VTech Baby's Learning Laptop Mouse Replacement

Geschrieben von: Justin Schanze

Kommentare: 1

VTech Baby's Learning Laptop Mouse Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

10 Minuten

Einleitung

If the mouse has become unresponsive or does not center itself, the springs inside may have come loose or be broken altogether. Follow this guide to replace the mouse and its components.

Werkzeuge

Schritt 1

To remove the battery door, loosen the screw shown using a Phillips #2 screwdriver.
A coin can also be used to loosen the screw.

Schritt 2

Remove the battery door.
Take out the batteries.

Schritt 3

Remove the rear panel screws using a Phillips #2 screwdriver.
Two 21.6mm (Long)
One 9.8mm (Short)
Five 13.8mm (Medium)

Schritt 4

Gently pull up on the rear panel.
Be careful not to pull on the wire connections.
Rest the laptop open on the table.

Laptop is not playing sound after putting new batteries . Can you tell how to repair the same.

Sapna - 04/05/17

Schritt 5

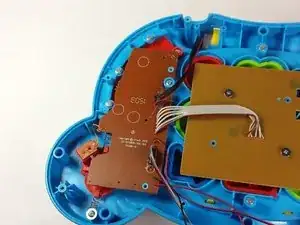

Using a Phillips #0 screwdriver, remove the three 7.3mm screws.

Schritt 6

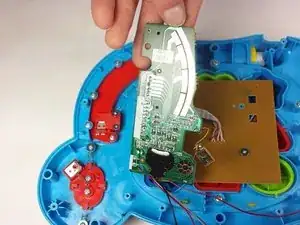

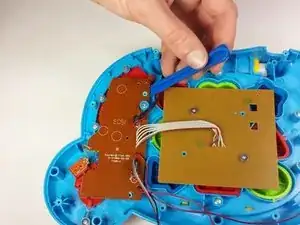

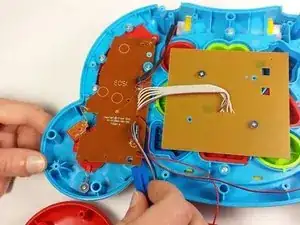

Once the screws have been removed from the board, use a plastic opening tool to gently pry up the board and expose the mode switch assembly underneath.
Lay the board down gently and out of the way.
Take care not to damage any of the wires or the board itself.

Schritt 7

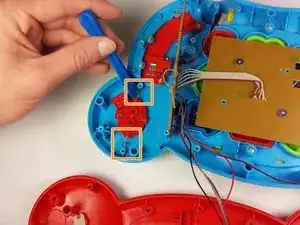

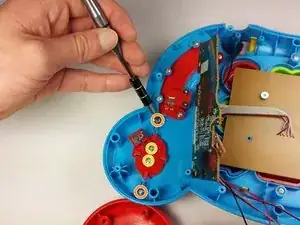

Locate and remove the following screws:
Two 11.0mm Phillips #2.
Two 7.3mm Phillips #0.

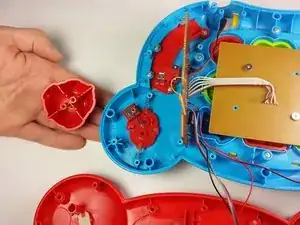

Remove the top of the mouse which will separate from the under side once the screws are removed.

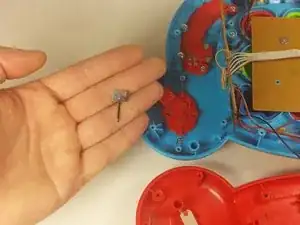

The metal connection near the yellow screws on the top left of the mouse assembly falls out very easily. Make sure to replace the metal connection with the prong pointing up. Otherwise, the mouse will not work correctly.
