VTech Baby's Learning Laptop Speaker Replacement

Geschrieben von: Jordan Smith
  • Kommentare: 3
VTech Baby's Learning Laptop Speaker Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

10 Minuten

Einleitung

Is the sound for your device distorted, crackling or nonexistent? This guide may be a solution to fix your problem.

  1. iVivn2HWYeXjOSwp

    • To remove the battery door, loosen the screw shown using a Phillips #2 screwdriver.

    • A coin can also be used to loosen the screw.

  2. mXEx4dGKS5k6O6ct

    • Remove the battery door.

    • Take out the batteries.

  3. 5OencTLpgZbANSOZ

    • Remove the rear panel screws using a Phillips #2 screwdriver.

    • Two 21.6mm (Long)

    • One 9.8mm (Short)

    • Five 13.8mm (Medium)

  4. DSsiVaGkpRhua2Zp
    DSsiVaGkpRhua2Zp
    Q5S1VVMZmtIrVMcD

    • Gently pull up on the rear panel.

    • Be careful not to pull on the wire connections.

    • Rest the laptop open on the table.

    Laptop is not playing sound after putting new batteries . Can you tell how to repair the same.

    Sapna -

  5. hGsPdBriIyGoNg1B
    hGsPdBriIyGoNg1B
    gmLN4ilJp6CTFIdf

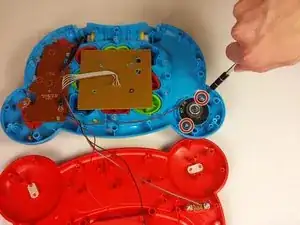

    • Use a Phillips #0 screwdriver to unscrew the two 6.0 mm screws on the speaker.

  6. lCSKNhphhJJIvGWb
    lCSKNhphhJJIvGWb
    QPMQq3w1fYKLkXlC

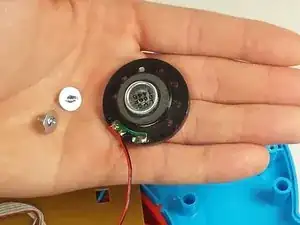

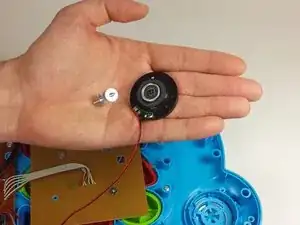

    • Remove the two 6 mm screws from the device.

    • Remove the speaker.

    • Be careful not to damage the wiring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
