VTech Baby's Learning Laptop Volume Switch Replacement

Geschrieben von: Jordan Smith
  • Kommentare: 1
VTech Baby's Learning Laptop Volume Switch Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

5 Minuten

Einleitung

Has the sound for your device suddenly stopped working? Unable to adjust the volume? This guide may be the solution to your problem.

  1. iVivn2HWYeXjOSwp

    • To remove the battery door, loosen the screw shown using a Phillips #2 screwdriver.

    • A coin can also be used to loosen the screw.

  2. mXEx4dGKS5k6O6ct

    • Remove the battery door.

    • Take out the batteries.

  3. 5OencTLpgZbANSOZ

    • Remove the rear panel screws using a Phillips #2 screwdriver.

    • Two 21.6mm (Long)

    • One 9.8mm (Short)

    • Five 13.8mm (Medium)

  4. DSsiVaGkpRhua2Zp
    DSsiVaGkpRhua2Zp
    Q5S1VVMZmtIrVMcD

    • Gently pull up on the rear panel.

    • Be careful not to pull on the wire connections.

    • Rest the laptop open on the table.

    Laptop is not playing sound after putting new batteries . Can you tell how to repair the same.

    Sapna -

  5. 6WrbdNAEfEGdFxhh

    • Flip your device so the bottom panel is facing up.

  6. RINOKKvOwoHVJcIW
    RINOKKvOwoHVJcIW
    EMDxWLl1tux2oCrZ

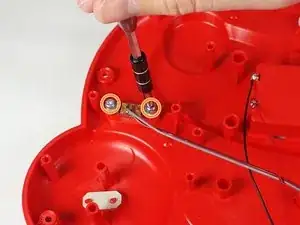

    • Use a Phillips #2 screwdriver to remove the two 7.7mm screws on the volume switch.

  7. kNHVZK2C2SJcsUr1
    kNHVZK2C2SJcsUr1
    6GQKpCmuoPPNHQYZ

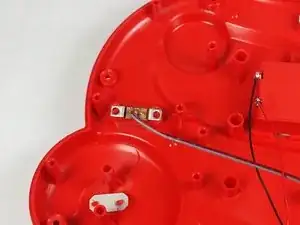

    • Remove the volume switch.

    • Be careful not damage the wiring.

Abschluss

To reassemble your device, follow these instructions in reverse order.
