VTech CS6719-2 Circuit Board Replacement

Geschrieben von: Benjamin Field
  • Kommentare: 1
VTech CS6719-2 Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 Minuten

Einleitung

During this guide, the back of the phone will be taken off by using the spudger. Then the circuit board will be detached by unscrewing two screws.

  1. p6Wmu36OGRrgBEB1
    p6Wmu36OGRrgBEB1
    1ZgGJSWtCTWfZkF3

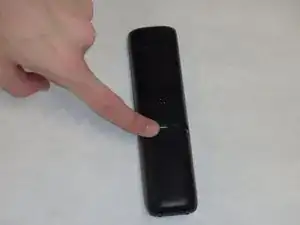

    • Push down on the battery cover in the direction of the arrow located on the back of the phone.

  2. DBV2lKknUQaZTjOC

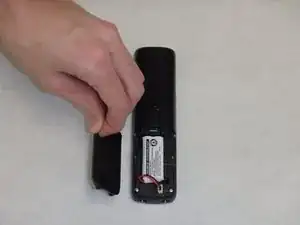

    • Pull the battery cover off of the back of the phone.

  3. GAAsHvSaIZsyQHIR

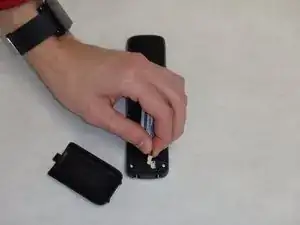

    • Unplug the battery input cable.

  4. IRCps2BEPXiYhbBP

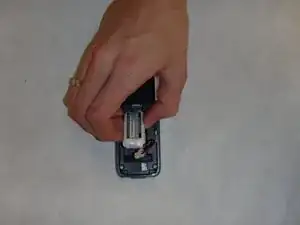

    • Lift the battery out of the back of the phone.

  5. LKKoSFNYjxMyZMoN
    LKKoSFNYjxMyZMoN
    lONCbpA3PS3X2Nvy

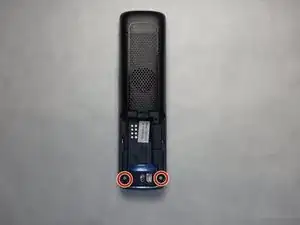

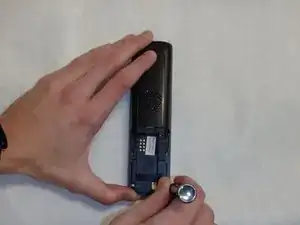

    • Remove the two 9mm screws on the back side with a Phillips #0 screwdriver.

  6. wdb41INRVof5UR6e

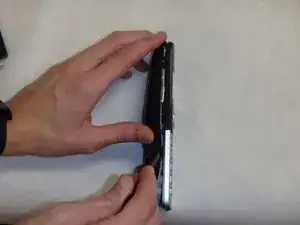

    • Use the plastic opening tool and spudger to pry the back side of the phone off.

  7. kvXwUW2SP1PPR2cC
    kvXwUW2SP1PPR2cC
    dVRhrUxRgXGEXOSm

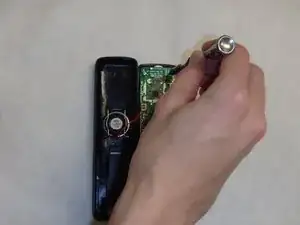

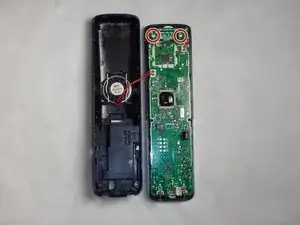

    • Remove the two 9mm screws located inside the back cover at the top.

Abschluss

To reassemble your device, follow these instructions in reverse order.
