VTech InnoTab 2 Backup Battery Replacement

Geschrieben von: Mark Lefcourt
  • Kommentare: 0
VTech InnoTab 2 Backup Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

2

Zeitaufwand

4 Minuten

Einleitung

If your device will not save settings when powered off then replace this battery.

  1. oaBC2h2OQP36WvVl
    oaBC2h2OQP36WvVl
    11Ri4EaNMcAQcyq1
    3g3WVEUshnVmlaRa

    • The CR2032 compartment is located on bottom left corner on the backside of the device.

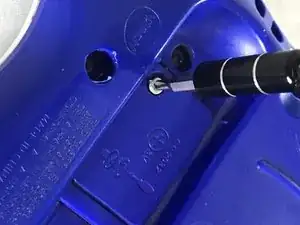

    • Unscrew the single 4 mm Phillip screw and slide the compartment cover off.

    • The 4 mm Phillip screw will not completely screw out of the cover.

  2. 1KdeVtBCYa4AnoTl
    1KdeVtBCYa4AnoTl
    ZJnvdB5jy2T64Ppl
    Y15NtBvxL34WKis5

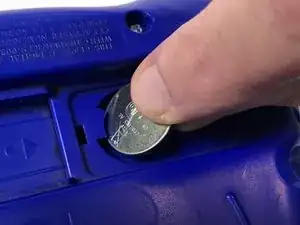

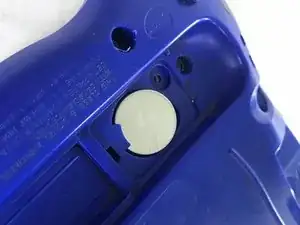

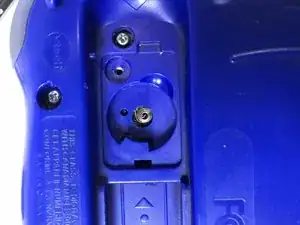

    • Gently remove the CR2032 battery with your fingers.

    • A charged lithium-ion battery can catch fire and/or explode if accidentally punctured.

Abschluss

To reassemble your device, follow these instructions in reverse order.
