Einleitung

By the end of this guide you should be able to access the screen on your tablet for removal or replacement.

  1. ceSaGXs3KMpVtuHK

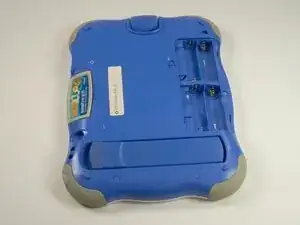

    • Turn your device to where the back panel is facing you.

  2. JDPmHGo1AO5iqF6b
    JDPmHGo1AO5iqF6b
    YABqkQDpfsYKtvq1

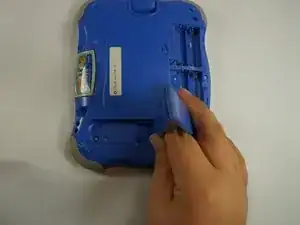

    • Lift the Leg all the way up and twist the bottom to remove.

    • Once the bottom part pops out the whole leg should just come off.

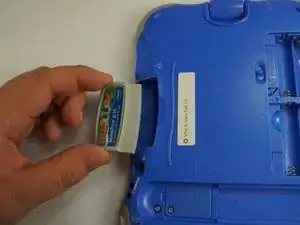

    • Remove any game cartridge from the device.

  3. aWkYmKBc1neJlrbY
    aWkYmKBc1neJlrbY
    jPfUQxXLKAXybFue
    xvPLKwlktJphOsCH

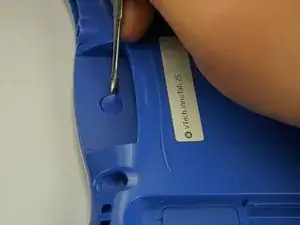

    • Remove all of the plastic tabs on the device. These are covering screws that will need to be removed.

    • These covers are made of hard plastic so they may be difficult to remove.

    • There is a special tab in the cartridge cover that is made of rubber, make sure to not break this tab.

  4. atibnGGIi3OXaBqL
    atibnGGIi3OXaBqL
    PY52jYMJwfCD2pNI

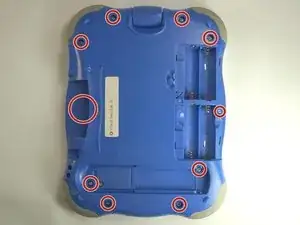

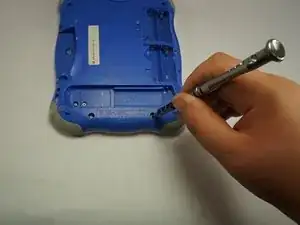

    • Remove all nine screws from the back of the device using a J0 bit.

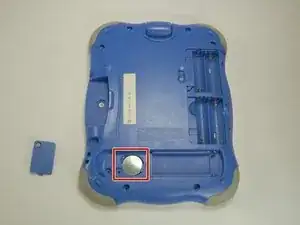

    • Remove the small battery.

  5. CiBJIODGAsnvX6D3
    CiBJIODGAsnvX6D3
    tlIfKTGHkHEZqouN

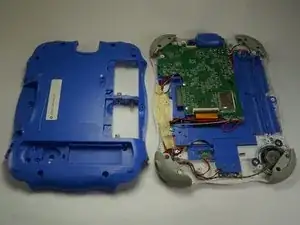

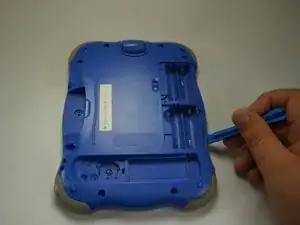

    • Using a plastic opening tool, detach the backplate from the front piece.

    • Do not use excessive force. Double check that you removed all the screws if the panel is not coming off easily.

    • Once the backplate has been removed, you will have access to the circuit board.

  6. DQZsEwGr2nhrmcFD
    • First begin by removing the three cross-head screws using a J0 bit.

  7. BHEXaQvfRoqx6TQj

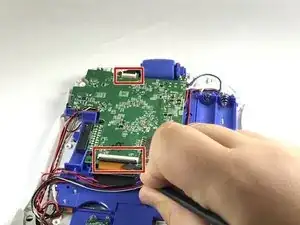

    • First remove the ribbon cables. There are two highlighted by the red squares

    • Do not apply too much pressure and make sure that the black plastic tabs are fully open before you pull the cable out.

  8. lxa4mJNgIqiFCo1X

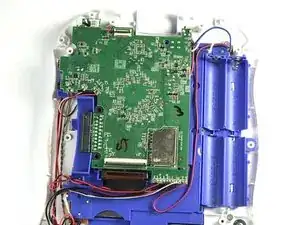

    • Remove the camera from the assembly and put is a safe place so that it will not get damaged.

  9. OICF6nLHP5gWW3oy

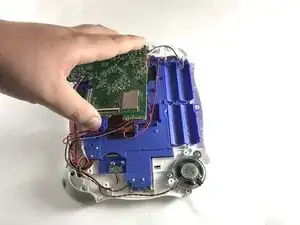

    • Remove the board from the main assembly.

    • Be careful not to pull too hard so that the cables aren't broken.

  10. nrpTBlBIlg2scbLs
    • De-solder the points shown to fully remove the cables and free the board.

    • A soldering guide offered by IFIXIT can be found here Soldering Skills.

  11. GiSOtV6LVUkIKBLb
    GiSOtV6LVUkIKBLb
    EcnjSHPdVSfQGJgd
    • After removing the back plate and screws, all screws have been removed to separate the circuit board and wires from the front panel.

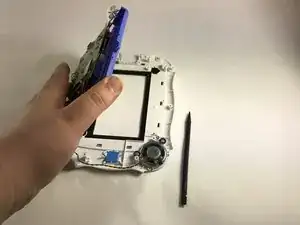

    • Remove the front panel from the device to expose the screen.

  12. EFeiIXAQDYyP52CD

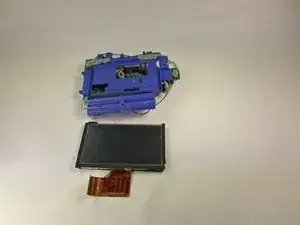

    • Using a heat gun, heat the glue that holds the screen to the rest of the device.

    • While heating, carefully pull screen from the device exposing the ribbon wire on the back of the screen, disconnect.

Abschluss

To reassemble your device, follow these instructions in reverse order.
