VTech Kidizoom Camera Connect Power Distribution Circuit Board Replacement

Locate the four plastic screw covers denoted by the markers and gently pry them up with the metal spudger.

Remove all four (11mm) screws with the Philips #0 screwdriver.

Remove the two battery cartridges located on the underside of the camera.

Once cartridges are removed, use the metal spudger to pry open the top, bottom, and both sides of the camera.

The device should now be open and ready for further repair and/or replacement parts.

Locate and remove the screws circled in the provided image with a Philips #0 screwdriver.

Unsolder the connection points on the motherboard.

Unsolder the connections to the right battery terminal. Removing the terminal allows easier access to the motherboard.

Carefully pull up on the motherboard and pink plastic underneath the motherboard. The pink plastic contains the display and is connected to the motherboard.

Unsolder the wires connected to the power distribution circuit board.

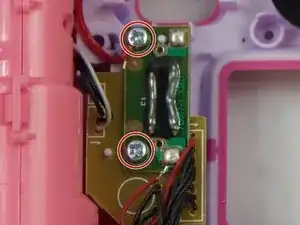

Locate and remove the two screws that hold in the power distribution circuit board using a Philips #0 screwdriver.

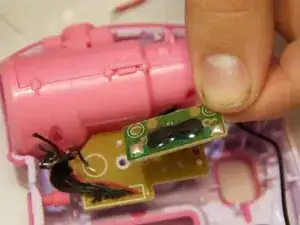

Gently pull up on power distribution circuit board and remove it from the device.
