VTech Learning Tunes Karaoke Mode Selector Replacement

Geschrieben von: Adam Chaberek
  • Kommentare: 0
VTech Learning Tunes Karaoke Mode Selector Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 20 Minuten

Einleitung

Can't switch modes between songs? This guide will show you how to replace a faulty mode selector.

  1. TasIVrSmwIjKdVUP

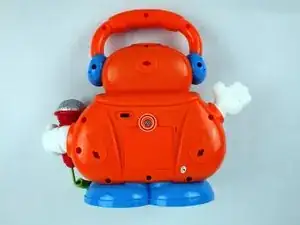

    • To remove the battery door, loosen the 4mm Flathead screw.

    • A coin can also be used to loosen the screw.

  2. g5OvDVZHHJZe3P3D
    g5OvDVZHHJZe3P3D
    uOngrhUJDEFmPVAE

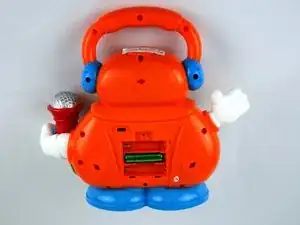

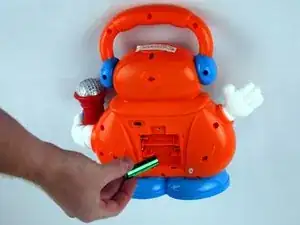

    • Remove the battery door and take out the batteries.

  3. 6rfqjkPl6HuCV5bH

    • Remove the six 9.5 mm Phillips #2 screws.

    • Remove the six 6.0 mm Phillips #2 screws.

  4. 6JiEvUU6ycdfNAVT
    6JiEvUU6ycdfNAVT
    UPDRuA6MCuIkhvMg

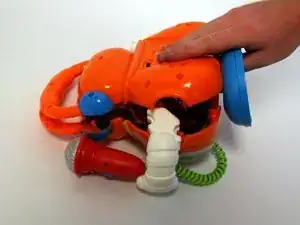

    • Gently pull up on the rear panel.

    • Be careful to not pull on the wire connections.

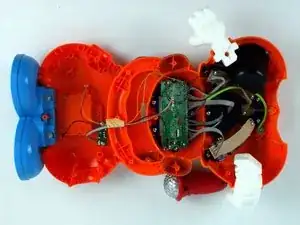

    • Gently place the back panel underneath the top panel with the tops facing each other, as shown in the picture.

  5. c1DrWCuQTiXm1QJq

    • Remove the two 7.9 mm Phillips #1 mode switch board screws.

  6. W2BQSoqtMcUWWfPZ
    W2BQSoqtMcUWWfPZ
    c3H4MLGEaNdYFr2i

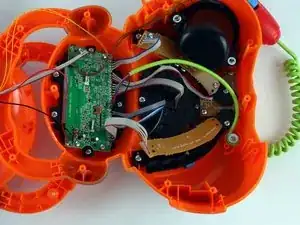

    • Once the screws have been removed, carefully move the mode switch board to expose the mode switch assembly underneath.

  7. QnSBZQXQ5jhDtLG1
    QnSBZQXQ5jhDtLG1
    2DCvORPX5KWHvkPP

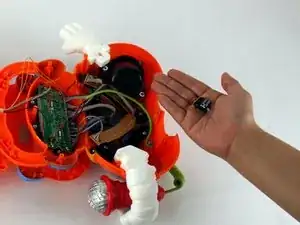

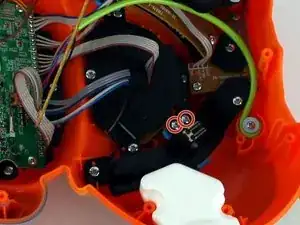

    • Using a Philips #1 screwdriver, remove the two 5.6 mm screws on the switch.

    • Once the screws have been removed, you can easily remove the mode switch.

Abschluss

To reassemble your device, follow these instructions in reverse order.
