VTech Learning Tunes Karaoke Power Button Replacement

Geschrieben von: Gamuchirai Chifamba
  • Kommentare: 0
VTech Learning Tunes Karaoke Power Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Having issues turning on and off the Vtech Learning Tunes Karaoke? Follow this guide to solve the problem.

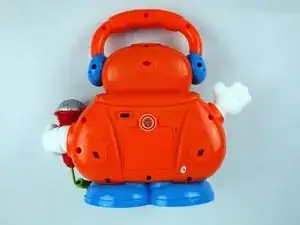

  1. xk2gx5AZSxLHXkuB

    • To remove the battery door, loosen the 4mm screw using a Flathead screwdriver.

    • A coin can also be used to loosen the screw

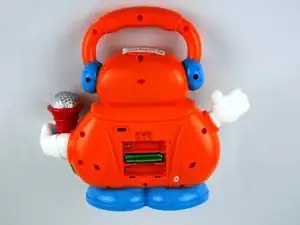

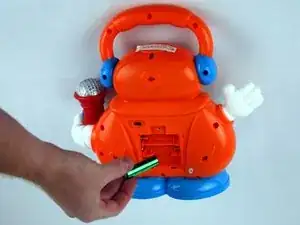

  2. 5RQTGSJRS4AMl2um
    5RQTGSJRS4AMl2um
    MXFYWSKUBWvMc5FH

    • Remove the battery door and take out the batteries.

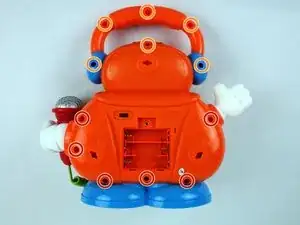

  3. xGGMUEMlmcvVcFGQ

    • Remove the six 9.5 mm Phillips #2 screws.

    • Remove the six 6.0 mm Phillips #2 screws.

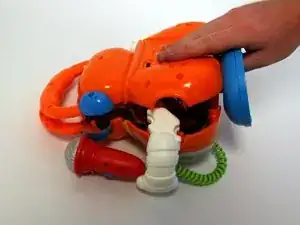

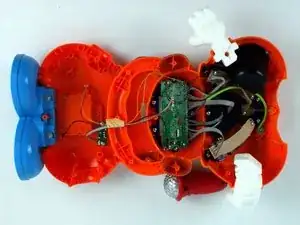

  4. dR5i3cpQQrNxETsl
    dR5i3cpQQrNxETsl
    3RYWdGkSEfrfDpMD

    • Gently pull up on the rear panel.

    • Be careful to not pull on the wire connections.

    • Gently place the back panel underneath the top panel with the tops facing each other, as shown in the picture.

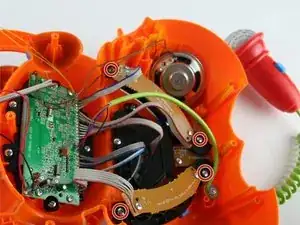

  5. 3QnONBTnmecmIB4c

    • Remove four 7.9 mm screws from the mode selector and voice selector trays.

  6. wshNLrZY3pqhx1PS

    • Remove the two 5.6 mm screws from the power button board.

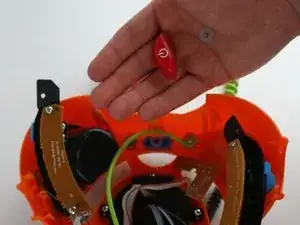

  7. TLYCMEJjfrRypqS6

    • Carefully move the power button board out of the way.

    • From here you can replace the button.

Abschluss

To reassemble your device, follow these instructions in reverse order.
