VTech MobiGo Touch Learning System Screen Replacement

Geschrieben von: Daniel Kresge
  • Kommentare: 2
VTech MobiGo Touch Learning System Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

12

Zeitaufwand

4 Minuten

Einleitung

This guide shows users how to replace the screen. By first taking the device apart until they can reach the screen so that they can replace it.

  1. P4tgNGNP5KAfotOW

    • Remove the battery covers and the four batteries.

  2. ENhAVcTxAv2CpMSJ
    ENhAVcTxAv2CpMSJ
    POiVIGRsECMtGcLg

    • Remove the four plastic caps with a metal spudger to expose the 6.0 mm Philips JIS #0 case screws.

    • Remove the eight 6.0 mm JIS #0 case screws.

  3. RNsQPuKGIAPYJmVo
    RNsQPuKGIAPYJmVo
    mSPdBwJUoIkeHpHB

    • Using a plastic opening tool, separate the two pieces of the case carefully.

  4. eIPAxYyVEp1TThhl

    • Remove the three 4.0 mm Philips J0 screws holding the "L" shaped brackets in place.

  5. NM4gBn1Co2pb3SPu

    • Remove the three "L" shaped brackets and the spring.

  6. VUXfqUXmqV1AY1oZ

    • Flip the device over and remove the three 4.0 mm Philips J0 case screws.

  7. fnDCA6BqincRdnQJ

    • Separate the front and back of the case.

    • Use a plastic opening tool if necessary.

  8. qQAW6EWBACQrHUsG

    • Remove the 4 (3.4 mm Philips J0) screws holding the screen in

  9. IgHVnyYNRCF4Js6K

    • Remove the black tape

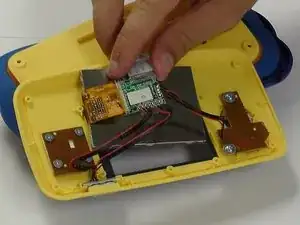

  10. jsMEEOYa3MTCSdk6

    • Remove the circuit board from the back of the screen.

    • The circuit board has double sided tape on the back side holding it to the screen.

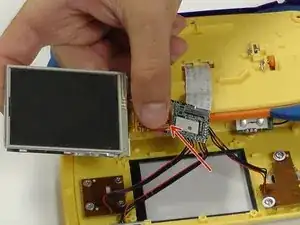

  11. qMdsA1BGYqBADTDc

    • Peel the ribbon wire off of the circuit board. Now the screen should be free to remove.

    mine i don’t know about

    Jesse Eagan -

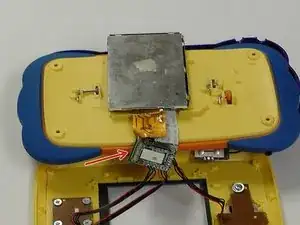

  12. 1ZMcEf1tOPO6gyBH

    • Resolder the new screens ribbon cable on the the circuit board.

    • Always be careful when soldering.

Abschluss

To reassemble your device, follow these instructions in reverse order.
