VTech Record and Learn KidiStudio Black Piano Keys Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 6 Minuten

Einleitung

Showing how to replace the black piano keys on the VTech Record and Learn KidiStudio.

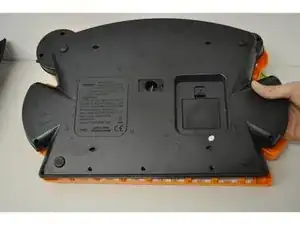

  1. HVCYD4IKPYJj5mKE
    HVCYD4IKPYJj5mKE
    UpAQchB2NVBjYBpK

    • Unscrew 11 PH2 screws (7 mm).

    • Remove the black plastic backing.

    • Remove the batteries from the toy before beginning replacement of the piano keys.

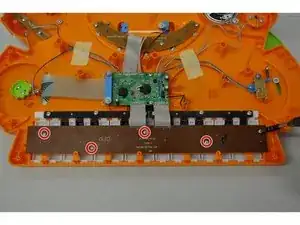

  2. eo6uSwXArNyPTXFA

    • Near the bottom of the device, unscrew 5 PH2 screws (7 mm) on the electric board.

    • Pull back the electrical board.

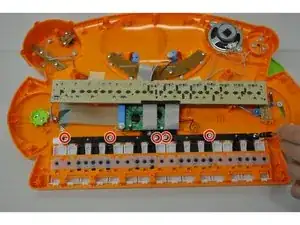

  3. aNxG5JogyWNWBpyP

    • Unscrew 6 PH2 screws (11 mm) on the black bar holding the keys on the device.

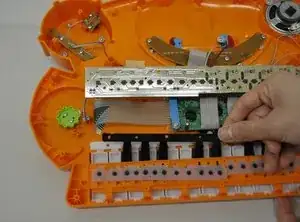

  4. SNRrhLcoBFjh2MA6

    • Pull out the black piano keys and replace with the new piano key part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
