VTech Record and Learn KidiStudio Microphone Replacement

Geschrieben von: Shaina Carbonel
  • Kommentare: 1
VTech Record and Learn KidiStudio Microphone Replacement

Schwierigkeitsgrad

Moderate

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will be helpful for someone interested in replacing the microphone on the 2014 Vtech Record and Learn KidiStudio.

  1. U6GlKiTxEoMJdMGi
    U6GlKiTxEoMJdMGi
    1UkY1xo3XViIgQ5Q

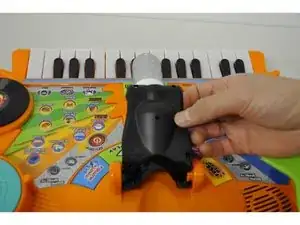

    • Remove all four screws (7 mm) using PH2.

    • Remove black microphone base cover from the device.

    • Remove the batteries from the toy before beginning replacement of the microphone.

  2. ul61TtE1MKYvm6Vl

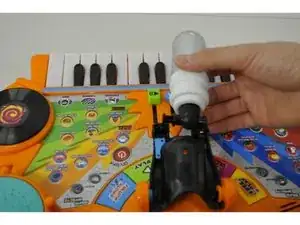

    • Remove the silver microphone component from the black base.

  3. 6JemoXeKGb1hh5kh
    6JemoXeKGb1hh5kh
    FPU5kRDPDFZIeGEY

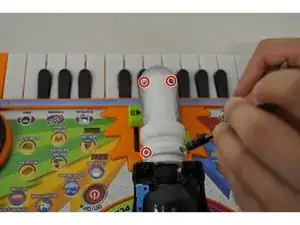

    • Unscrew 4 PH2 screws (7 mm) from the silver microphone component.

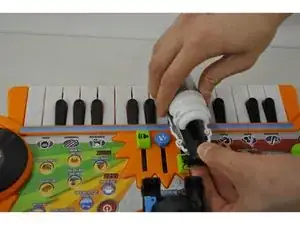

    • Open the silver microphone housing and remove the actual microphone from the device.

  4. 5sqZu3PDK2uAdJt1

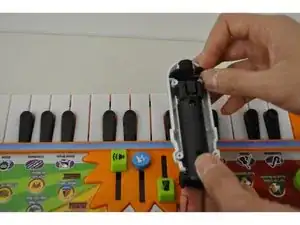

    • Install new microphone in the device like shown.

Abschluss

To reassemble your device, follow these instructions in reverse order.
