VTech Record and Learn KidiStudio Speaker Replacement

Geschrieben von: Shaina Carbonel
  • Kommentare: 0
VTech Record and Learn KidiStudio Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

3

Zeitaufwand

5 - 10 Minuten

Einleitung

This guide will show how to replace the speaker for the 2014 VTech Record and Learn KidiStudio if it stops working.

  1. bYkbb1JGlM55ea6k
    bYkbb1JGlM55ea6k
    saKLNaIZRF6nBf4u

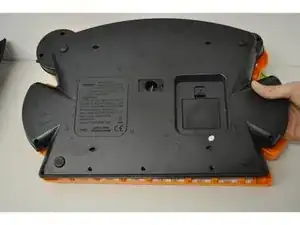

    • Unscrew 11 PH2 screws (7 mm).

    • Remove the black plastic backing.

    • Remove the batteries from the toy before beginning replacement of the speaker.

  2. nOecJOrRXYgOtQmG

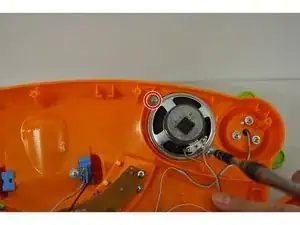

    • In the top right corner inside the device, unscrew the 2 PH2 screws (5 mm) holding the speaker in place.

  3. a3SaQZh1WsLlaCce

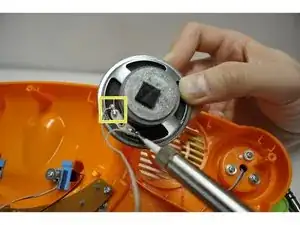

    • Desolder the electrical connections from the speaker and replace part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
