VTech Record and Learn KidiStudio Whammy Bar Replacement

Geschrieben von: Shaina Carbonel
  • Kommentare: 0
VTech Record and Learn KidiStudio Whammy Bar Replacement

Schwierigkeitsgrad

Moderate

Schritte

3

Zeitaufwand

8 Minuten

Einleitung

This guide provides knowledge on how to replace the Whammy bar on the 2014 Vtech Record and Learn KidiStudio.

  1. hjPeBMBXfpKBbEAb
    hjPeBMBXfpKBbEAb
    3wlEp4UDIX4DaFD4

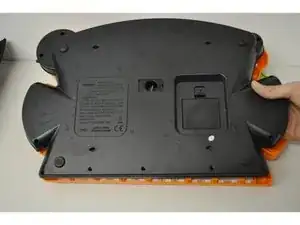

    • Unscrew 11 PH2 screws (7 mm).

    • Remove black plastic backing.

    • Remove the batteries from the toy before beginning replacement of the whammy bar.

  2. cYVGjjVtD5TeNOm5
    cYVGjjVtD5TeNOm5
    YrLcdlaUudpDan3d

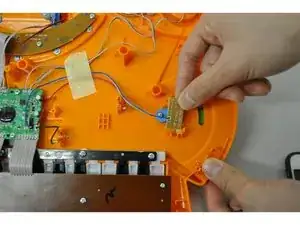

    • Remove PH2 screw (5 mm) from yellow/gold colored circuit board and pull back to access the whammy component.

  3. V2m2WvRp1cVHYHgF
    V2m2WvRp1cVHYHgF
    eEvbByZsRhP6byR4

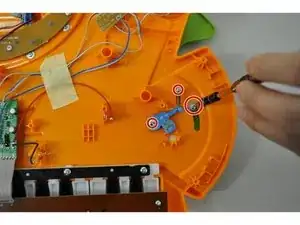

    • Remove 3 PH2 (5 mm) screws connected to the whammy bar component.

    • Remove blue piece from back of the device. This will free the whammy bar. Replace the whammy bar with new part.

Abschluss

To reassemble your device, follow these instructions in reverse order.
