VTech Safe And Sound DM221 "TALK" Button Replacement

Geschrieben von: Krystal
  • Kommentare: 0
VTech Safe And Sound DM221 "TALK" Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

Keine Schätzung

Einleitung

Is your "TALK" button not working properly? Read this repair guide to learn how to replace it.

  1. ZZ54jjAieqlbQM2m

    • Remove the battery cover.

  2. NWrJw6x2Mg6HTXwi

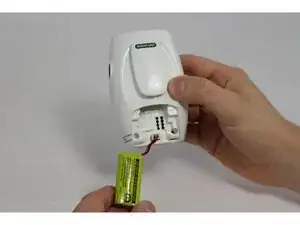

    • Unplug the battery from its connector and remove.

  3. NlVxHR6MCRkZGDfP

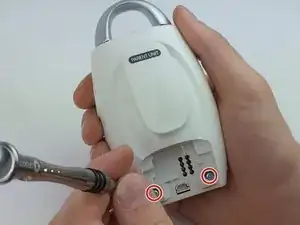

    • Using the Phillips #00 screwdriver, unscrew the two 5.0 mm screws at the bottom of the monitor.

  4. buxRWNiSFhyQxGIm

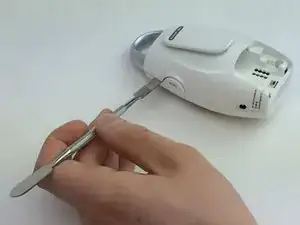

    • Separate the back half of the device from the front using the metal spudger.

  5. wSa5OAEavTtNluqC

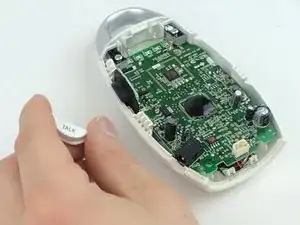

    • Remove the “TALK” button to get access to remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
