VTech Safe And Sound DM221 Speaker Replacement

Remove the battery cover.

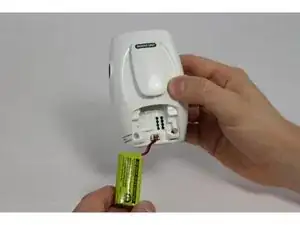

Unplug the battery from its connector and remove.

Using the Phillips #00 screwdriver, unscrew the two 5.0 mm Phillips #00 screws at the bottom of the monitor.

Separate the back half of the device from the front using the metal spudger.

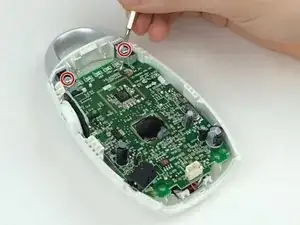

Remove the two 5.0 mm Phillips #00 screws at the top of the device which holds the antenna at the top of the motherboard.

This will allow the removal of the silver handle.

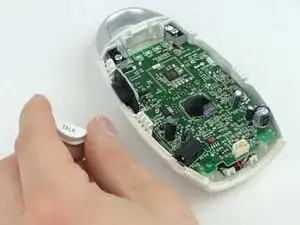

Remove the “TALK” button to get access to remove the motherboard.

Push down on the antenna, located on the top of the motherboard.

Gently remove the motherboard away from the monitor.

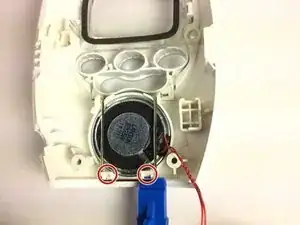

Use the plastic spudger to push the two white plastic tabs, at the bottom of the device, up to release the metal retaining clip.
