Einleitung
You will need knowledge of how to use a soldering iron. For more information regarding soldering visit: Soldering Skills
Used for mother board replacement and repair If the unit starts behaving erratically. Along the process you will determine if the behavior is not due to a faulty power jack, wires, and or microphone. If so proceed with motherboard replacement.
Werkzeuge
-
-

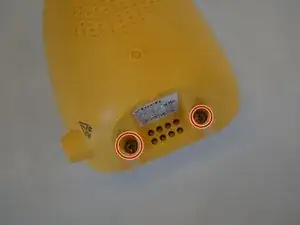

Along the back of unit there are two 4mm philips head screws towards the bottom of the unit. Start by removing these two screws using your PH0 screwdriver.
-
-
-

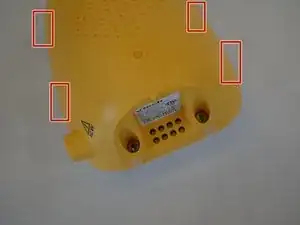

Using the plastic spudger gently pry along the middle of the 2 sections of the plastic housing in order to release plastic latches on the inside of the housing.
-
-
-

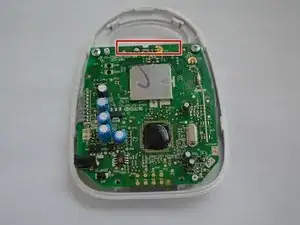

Remove the strip of adhesive tape located under the motherboard.
-

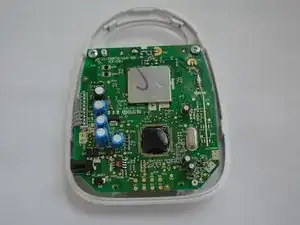

Gently lift the motherboard to expose the inner components.
-

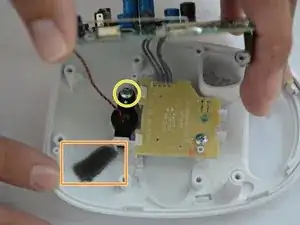

Use a spudger to scrape away the adhesive and foam connecting the microphone.
-

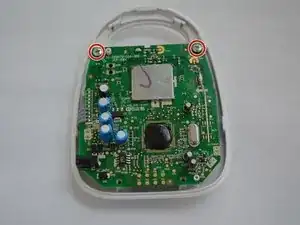

Unscrew the 4mm phillips head screw holding the microphone in place.
-
-
-

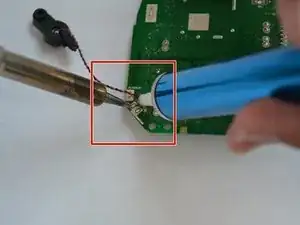

De-solder the connections from the motherboard using a soldering iron and a solder sucker.
-

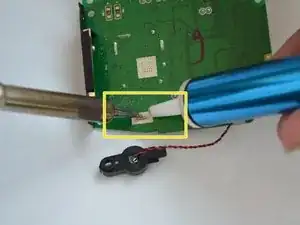

De-solder the connections to the microphone, located on the bottom left of the mother board.
-
De-solder the 4 wires connecting the LED board to the motherboard.
-
De-solder the antenna's solder joint, located above the microphone wire connection.
-
To reassemble your device, follow these instructions in reverse order.
