VTech Write and Learn Creative Center Circuit Board Replacement

Geschrieben von: Daniel Quilliam
  • Kommentare: 3
VTech Write and Learn Creative Center Circuit Board Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

The circuit board is an important aspect for the VTech Write and Learn Creative Center because it provides basic functionality to the device. The following repair guide addresses properly replacing a circuit board which will require soldering and the use of a screwdriver.

  1. LlKWpANlEEeUsYKt
    LlKWpANlEEeUsYKt
    fWLPkWRZZbOmGCoM
    BjCGBhfH2ibbmwMH

    • Remove all eleven 9mm PH 2 Phillips screws securing the back of the case.

  2. Me1slkfVxTS2EMsL

    • If there is any hot glue, remove it from the base of the wires.

    • During reassembly, reapply the hot glue to the connections to reinforce it's strength.

  3. Vn5UEODKXwJBPpoW

    • In order to remove the magnetic pen, you must desolder the two wires connecting it to the circuit board.

    • When you desolder, apply the tip of the soldering iron to the soldered joint for approximately 5 - 10 seconds.

    • The soldered joint will turn to a liquid consistency. At this moment, remove the wire and soldering iron.

    • Repeat each of the following steps for the second soldered joint.

    • Soldering irons are dangerously hot. The soldering iron should only come in contact with joints being desoldered or soldered.

    • Make sure to allow time for your soldering iron to heat up before using it.

    • Make sure the tip of the soldering iron is cleaned so the tin on the tip is exposed. This will allow the soldering iron to work efficiently.

  4. UJetVFFciIwhSYkj
    UJetVFFciIwhSYkj
    PYrqk2IrMHUJ2gCi
    VWhwDwfqAIpRr4gX

    • Undo the knot, then feed the cord from the inside of the case to the outside using the hole the company originally designed for the cord.

  5. TcFTsOWyJuDLGrDT
    TcFTsOWyJuDLGrDT
    sJlBwM2WvNhNEYnL
    fUIkRK26gKASiZnL

    • In order to remove the speaker, you must desolder the two wires connecting it to the circuit board.

    • When you desolder, apply the tip of the soldering iron to the soldered joint for approximately 5 - 10 seconds.

    • The soldered joint will turn to a liquid consistency. At this moment, remove the wire and soldering iron.

    • Repeat each of the following steps for the second soldered joint.

    • Soldering irons are dangerously hot. The soldering iron should only come in contact with joints being desoldered or soldered.

    • Make sure to allow time for your soldering iron to heat up before using it.

    • Make sure the tip of the soldering iron is cleaned so the tin on the tip is exposed. This will allow the soldering iron to work efficiently.

  6. 15kktYkChCMJcTYb
    15kktYkChCMJcTYb
    uFMHZcx4C6LUkS1i

    • Remove the 2 5mm PH 0 Phillips screws with 10 mm heads that secure the speaker to the front of the case.

  7. EevEM5B1hsLjIUli
    EevEM5B1hsLjIUli
    2fWf2nFuWLh1DqIF

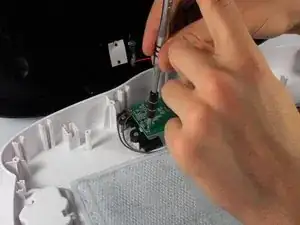

    • The first part of this step is to remove the hot glue from the base of the wires using the plastic opening tool.

    • The next step if to remove the two 7 mm long PH0 Phillips screws holding the board in.

  8. Z3DRidcRKIIfVsF3
    Z3DRidcRKIIfVsF3
    QHtCxZoLSYOBEs4p
    QeCZpk4EVxJYIums

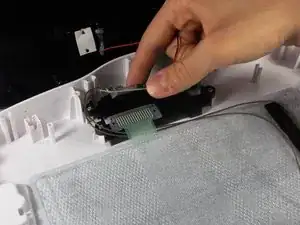

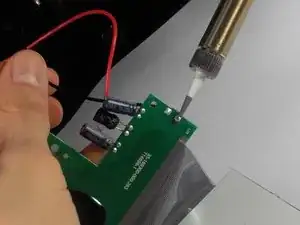

    • Now that the board is free desolder the two wires from the board.

    • Once the wires are desoldered remove the four screws from the black plastic mounting and then take out the circuit board and screen.

    • The ribbon cable connected to the writing surface should pop off he board easily, no soldering required!

    • The screws in the mounting are 7 mm long PH0 Phillips head.

    • Soldering irons and solder get very hot, ensure you are following proper procedure when desoldering the wires.

Abschluss

To reassemble your device, follow these instructions in reverse order.
