Vacuum Cleaner Brush Roll Replacement

Geschrieben von: Kaitlyn Sheets
  • Kommentare: 0
Vacuum Cleaner Brush Roll Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

20 Minuten

Einleitung

Follow these instructions to disassemble an upright vacuum cleaner and remove debris like hair or string that may be preventing the floor brush from spinning.

*Exact part locations and the number of screws may vary according to the device model.

  1. uDB4yfYGqxdPTIOb

    • Be sure to unplug the device from the wall outlet before disassembling.

    • Remove the bottom head of the vacuum cleaner by pressing the push button.

  2. IJHWE34gtyvPPVwj
    IJHWE34gtyvPPVwj
    xWCMAagPCiVsUdCC

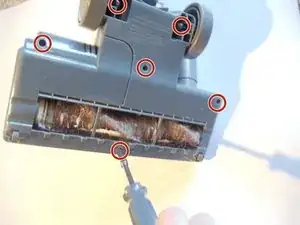

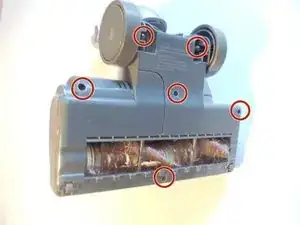

    • Carefully unscrew the 6 screws with a Phillips screwdriver. Set aside.

  3. mEd3O2WLCytBMcop

    • Separate the top portion of the head from the bottom.

    • Make sure not to pull off or damage the connected wires.

  4. OWNM1dFOlwwJoNoL

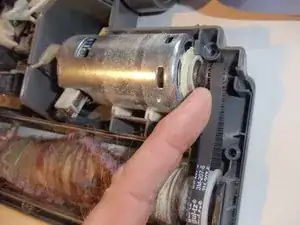

    • Slip off the belt.

  5. pwES4upFPSc2Bi5t
    pwES4upFPSc2Bi5t
    MPKvdMMTjqVyF6rT

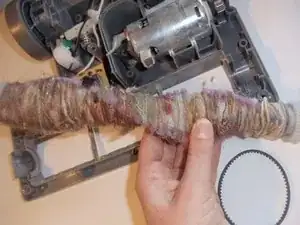

    • Pull the brush roll from its slots.

  6. hN2HNwBiNyTlqYmQ
    hN2HNwBiNyTlqYmQ
    mJlxB2SpZ4HpTDox

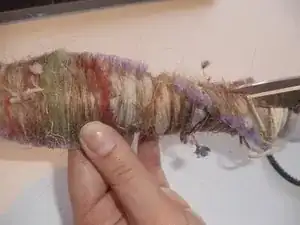

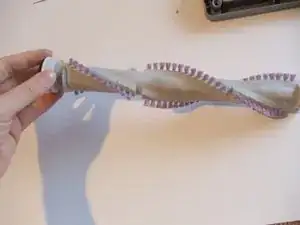

    • Use scissors to cut strings and other debris from the brush roll. Avoid cutting the bristles.

  7. LluDXSglVqtmjIoI

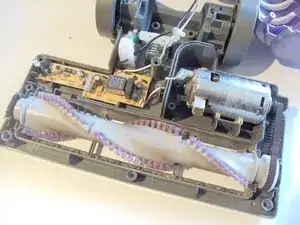

    • Return the clean brush roll and re-situate the belt to secure it in place.

Abschluss

To reassemble your device, follow the disassembly instructions in reverse order.
