Velocity Micro Cruz T301 Motherboard Replacement

Geschrieben von: Ahmed
  • Kommentare: 0
Velocity Micro Cruz T301 Motherboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

15 Minuten

Einleitung

Use this guide to reach the motherboard on your Micro Cruz T301. This guide will help you to reach the motherboard step by step.

  1. HXgQNU5Q4W5YtGQB

    • Insert the plastic opening tool in the SD port. The edge point should be pointed towards the rear panel.

  2. KY5UgrOkPwBOU4yh

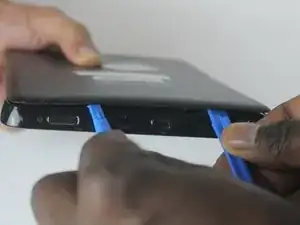

    • Insert a small opening tool between the rear panel and the tablet.

  3. QxdeFaPLboXGvCQT

    • The large opening tool is not needed any more.

  4. JkxYktaZTOL2Sfl5
    JkxYktaZTOL2Sfl5
    xUsIGbe3AWp5JZOe

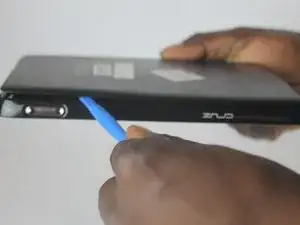

    • Move the small tool opener around the rear panel to free the 12 edges.

  5. nhlkIDFKdrFrhfEu

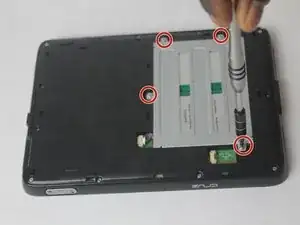

    • Using PH0 Phillips Driver, remove the 4 Screws in the Metal part.

  6. HGfQMe1pPJuueqH2

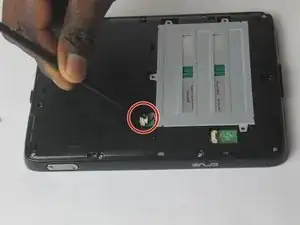

    • Using a plastic Spudger remove the battery connector.

  7. btqeRLc4xDUOPdRd

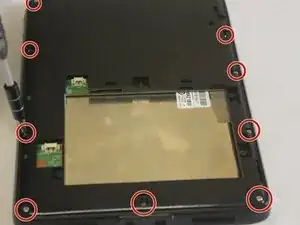

    • Using PH0 Phillips Driver, remove the 12 Screws in the cover.

  8. IBndSPgcqM6TqeJW

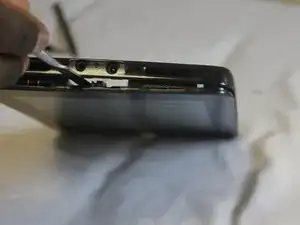

    • Place a metal Spudger between the tablet and the back cover.

  9. KOuaVGCZgdMbcpAM

    • Move the spudger around the tablet to release the clips attached to the tablet.

  10. QqcctbZ1oJ2VHnCc

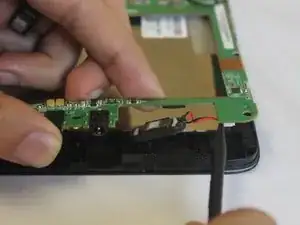

    • Use a plastic spudger to release the connection between the speakers and the motherboard as shown in the picture.

  11. QvlVHJidlronGN1C

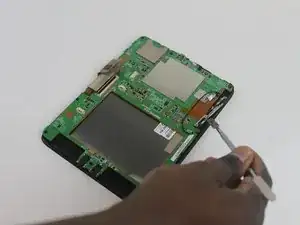

    • This guide shows the use of incorrect tools. Always use ESD safe tools when dealing with delicate internal components.

    • Use a nylon spudger to remove the top plug connector from the motherboard.

  12. tu3LIcar1RlXNmAo
    tu3LIcar1RlXNmAo
    Z1YBSBaL6Jr1nkkf

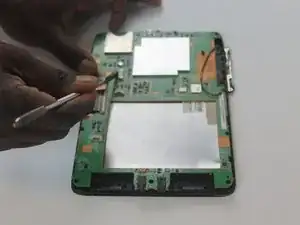

    • Use a metal spudger to remove both screen cable connectors

  13. uZHkPdoth1DdWWcP

    • use openning tools to remove the motherboard.

Abschluss

To reassemble your device, follow these instructions in reverse order.
