Velocity Micro Cruz T301 Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

8 Minuten

Einleitung

The Velocity Micro Cruz T301 is a tablet that is specifically designed as a multimedia device. The speaker is necessary for all audio based media. As such, it can be a vital part of the user’s experience.

This guide will show you the steps to remove the speaker on a tablet. Once the speaker is removed follow the guide in reverse to install a new speaker.

  1. cY5qKDq23MeU1Uvp

    • Insert an opening tool in the SD port, with the edge pointing towards the rear panel.

    • Use the opening tool to pry the back plate up.

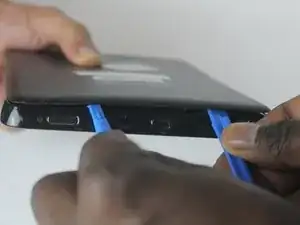

  2. u3DesCAfN21UmOIx

    • Insert a second opening tool into the space created by the first opening tool.

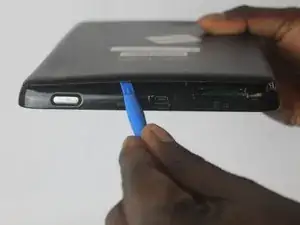

  3. tJOx1BslXCnUBUHY

    • Remove the first opening tool.

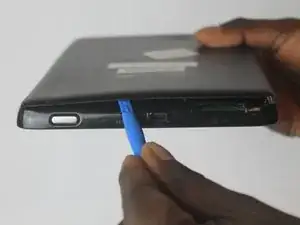

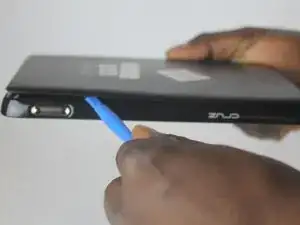

  4. XhaxaUySAJx5FauU
    XhaxaUySAJx5FauU
    eOkQUpCVYvtgCeA1

    • Slide the opening tool across the back plate to disconnect the clips joining the plate to the tablet.

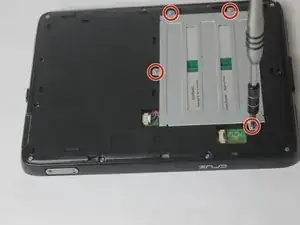

  5. dWhM4KXvSUOT5fSI

    • Remove the four screws in the metal plate covering the battery using a Phillips #0 screwdriver.

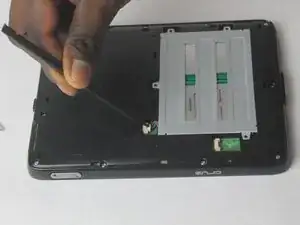

  6. Yhx4VpLH1oFQKFNC

    • Using a plastic spudger to remove the battery connector.

    • Failure to follow this step may result in an electric shock.

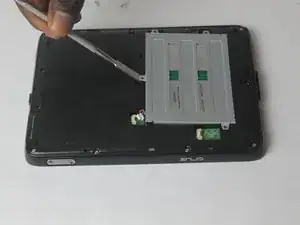

  7. 252kgoEdKaHDKRfc

    • Remove the battery with a spudger.

    • The photos in this guide use a metal spudger. Do not use a metal spudger as it can damage the device or conduct electricity causing a shock.

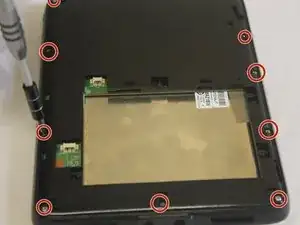

  8. DImuoxrNnTeCvkfQ

    • Remove the twelve screws in the cover with a Phillips #0 screwdriver.

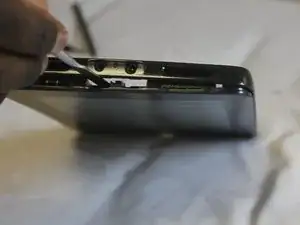

  9. Yl3JAgReGnoNmqUr

    • Place a spudger between the tablet base and the screen.

    • Again this photo shows the use of a metal spudger. The use of a metal spudger can cause damage to the device and can lead to an electric shock.

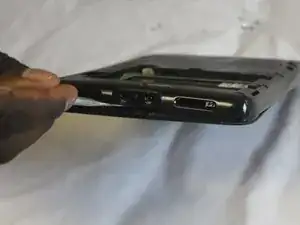

  10. IXIkqnFmOSgZ4nAv

    • Move the spudger around the face to release the clips attached to the tablet base.

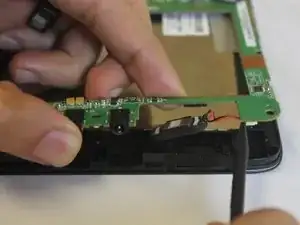

  11. f2JbqSooIvKW1FiV

    • Locate the speaker on the motherboard. Use the plastic spudger to disconnect the speaker from the connection port.

    • Plug the new speaker into the port, then use the plastic spudger to gently push it in.

Abschluss

To reassemble your device, follow these instructions in reverse order.
