This guide will show how to safely remove the RAM from the NoteMagix M10 A82 netbook.
Werkzeuge
-
-
Place the notebook on the table, with the battery facing away from you.
-
Slide the switch from "lock" to "unlock" with your right hand on the right side of the computer.
-
Maintain holding the right switch in the "unlock" position.
-
Use your left hand to slide the left switch from "lock" to "unlock".
-
-
-
Maintain both left and right switches in the "unlock" position.
-
Use your forefingers to push the battery out of the computer.
-
-
-

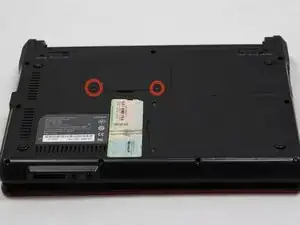

Locate the DDR panel and unscrew the two 3.65mm Phillips #1 screws holding it in place.
-

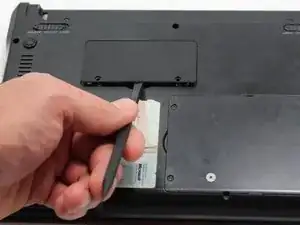

Use the spudger to lift the DDR panel off.
-
-
-

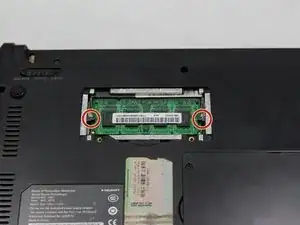

Push in the tabs on the sides that contain the RAM.
-

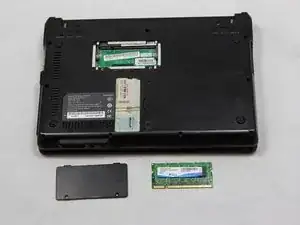

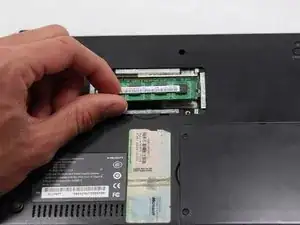

Gently raise the RAM up to a 45 degree angle and gently pull the RAM towards you.
-
To reassemble your device, follow these instructions in reverse order.
