Verizon Ellipsis 10 WiFi Module Replacement

Geschrieben von: Mary Duran
  • Kommentare: 1
Verizon Ellipsis 10 WiFi Module Replacement

Schwierigkeitsgrad

Easy

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

This is guide is designed to show how to replace the WiFi module in the Verizon Ellipsis 10.

  1. WGZWmDKKfaCElc2H

    • Open the SD/SIM card cover to start prying off the back cover.

    Can I rig up a tool this was gave to me

    Luckily SD card still in tac I let a friend use it for Netflix it was plugged in all nite while watching it could that be the reason it won't come on

    ribinstick48 -

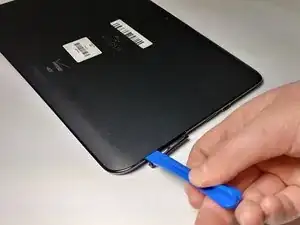

  2. cUJdUUdCeyMtXgjW

    • Start using the iFixit Opening Tool in the SD/SIM area to release the clips holding the back panel on.

  3. KToPAvMyEg6DM1kJ

    • Follow along the edge of the device to undo all of the retaining clips.

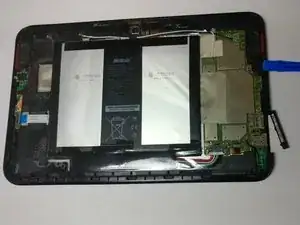

  4. UqwUJ1cTFCZAhPHk

    • Once all the clips are undone, the back panel should come off with little effort.

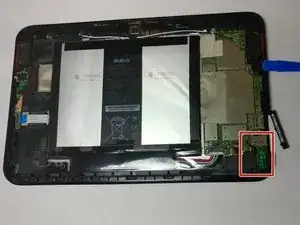

  5. 4IWDZty5ZglcPp3l

    • Locate WiFi module in bottom right-hand corner.

  6. ZoRBOx52IA6TEWjS

    • Unscrew the M1.5 screw using a Phillips #00 screwdriver.

  7. HQ3MuTirMOAaWyCT

    • Using a pair of tweezers or needle nose pliers, pull up the connecting wire.

    • Lift the module out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
