Verizon Ellipsis 7 Battery Replacement

Geschrieben von: Scott Mangin
  • Kommentare: 21
Verizon Ellipsis 7 Battery Replacement

Schwierigkeitsgrad

Very easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

This guide will teach you how to remove the back and replace the battery on the Verizon Ellipsis 7 tablet. A prying tool is required to remove the back plate of the phone, and the process is not very hazardous. This could be useful to replace a faulty battery or if you have multiple batteries to keep your device running on the go.

  1. wLRJPtSPKTxcjsbD
    wLRJPtSPKTxcjsbD
    dBJKchkqBR2gw6vi
    IQAWodfK55eB1erl

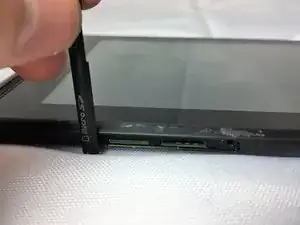

    • Power down device by holding down the power button until the screen goes black.

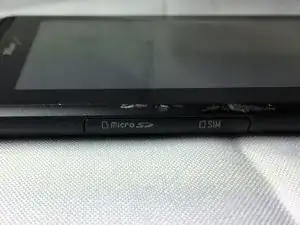

    • Remove the SIM card from the device to prevent damage.

    • To remove the SIM card, open the SIM card cover on the side of the device.

    • Push SIM card in and then pull out after hearing a click.

  2. w3CNYB5rk1bkB1Ju
    w3CNYB5rk1bkB1Ju
    JdEOndUEQKTwJhHy

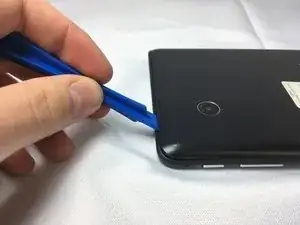

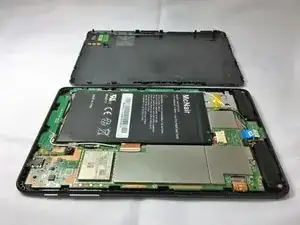

    • Take off the back panel.

    • Pry open the back cover carefully with a plastic opening tool.

    • Use the opening tool to disconnect the cover completely. Do not attempt to pull the back cover off with your hands.

    • Be sure to pry open all sides of the device. Attempting to take off the back cover when part of it is attached may snap the cover.

    Looking to purchase a back cover for this ellipsis model #QTASYN1. can you helo?

    nitamschmidt -

    Needing to purchase a back cover for an ellipsis model. #QTASYN1. Can anyone please help

    nitamschmidt -

  3. Pn6FLLvDmDqSEuTH
    Pn6FLLvDmDqSEuTH
    2rrEgClKY1PoEqPH
    ALtWuHXUtCh5w2O3

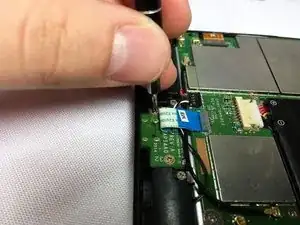

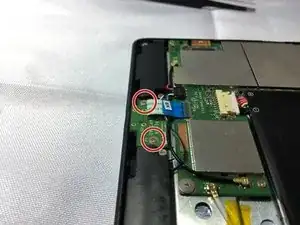

    • Remove the charging (micro-USB) port by unscrewing the indicated screws using the Phillips #00 screwdriver.

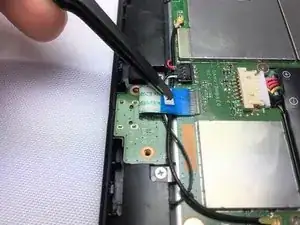

    • Disconnect the ribbon cable connecting the charging port board to the motherboard using tweezers.

    • Use the tweezers to grab the sides of black, plastic connector. Do not grab from the wires or try to wedge it out from the bottom.

    • Be extremely careful when disconnecting the ribbon cable. It is very delicate.

    it don't show battery replacement just the port

    joe kamer -

    I called Verizon and they said that they didn't have a replacement.

    Maudie Cox -

    Was thinking removing the battery was simpler. Thought also doing so , like a phone, would be the same as a hard reboot. I guess maybe not do much…

    Alexander Dutch -

    Step 3 is unnecessary. The battery is not connected to the charging port. It is connected through the white connector with all the multicolored wires. After you pry the battery off, you can just pull it out of the connector.

    ebynyzyr -

    exactly as last comment, nothing holding batery down just sticky film under battery i used tweezers and just slid white off no tab to push

    J K -

    So did it work afterwards? My battery is a McNair MLP3970125. Who was your vendor of choice?

    Leroy Leyba -

    again step 3 is unnecessary. Hopefully will work after charging. Ill let you know

    rohde412 -

    Did it work?

    sharonfromva -

    Interested in seeing if this actually fixes the battery

    sharonfromva -

    Yeah, I think this article was mislabeled. Should have been “Replacing the micro USB charging port”

    John Stover -

    Do not remove the micro USB charging port as shown in step 3 if only the battery is to be changed. Before trying to remove the battery carefully unplug the battery connector. You will not be able to completely clear the connector from its plug and that’s ok as long as it is partially removed. It will come clear when the battery is removed. Using a pry tool, preferably metal, insert the tool around the battery prying it loose from the two strips of double backed tape. You may need to work the tool around the battery a few times-this tape is really strong! After the battery is removed the replacement can be inserted. Before seating the new battery reattach the connector and be sure the battery is aligned properly because once the battery is seated the double backed tape will seize the battery the same way the original battery was stuck.

    ghnh@comcast.net -

Abschluss

To reassemble your device, follow these instructions in reverse order.
