Verizon Ellipsis 7 Rear Facing Camera Replacement

Geschrieben von: Charles Gorbett
  • Kommentare: 0
Verizon Ellipsis 7 Rear Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

11

Zeitaufwand

30 - 45 Minuten

Einleitung

This guide will show you how to replace a rear facing camera on a Verizon Ellipsis 7 correctly. This is vital in taking pictures from the back of your device. This guide will require extra precautions, as you are going to have to take out the main motherboard. Performing the actions in this guide incorrectly could break your device.

  1. tFlGT4MUIv6jjfw1
    tFlGT4MUIv6jjfw1
    xLkdx5rjiVSfD3hM
    HVnZuE5EyMxWpZEe

    • Hold down the power button until the screen goes black to turn off the device.

    • Remove the SIM card from the device to prevent damage.

    • To remove the SIM card, open the SIM card cover on the side of the device.

    • Push SIM card in and pull it out after hearing a click.

  2. tAuw4OsdKdsZICES
    tAuw4OsdKdsZICES
    2yxLBYUbMyMpgXiS

    • Take off the back panel.

    • Pry open the back cover carefully with a plastic opening tool.

    • Use the opening tool to disconnect the cover completely. Do not attempt to pry the back cover off with your hands.

    • Be sure to pry open all sides of the device. Attempting to take off the back cover when part of it is attached may snap the cover.

  3. IgLdUZv3rwyyfYLI
    IgLdUZv3rwyyfYLI
    opRTejm2luLDJWW4
    bmelVH2CseCuGy6k

    • Remove the charging (micro-USB) port.

    • Unscrew the indicated screws using the Phillips #00 screwdriver.

    • The screws shown in the picture are the more common 4.76 mm.

    • Disconnect the ribbon cable connecting the charging port board to the motherboard using tweezers.

    • Use the tweezers to grab the sides of black, plastic connector. Do not grab from the wires or try to wedge it out from the bottom.

    • Be extremely careful when disconnecting the ribbon cable. It is very delicate.

  4. vEWYwMBhZC6aBBpO
    vEWYwMBhZC6aBBpO
    KUj6MFORS1HEH4gd

    • Remove the charging port board from the phone using tweezers.

    • Place the replacement charging port into the phone.

    • Be cautious when replacing the ribbon cable onto the new charging port board.

  5. CPp2oYAy23FjTEDg
    CPp2oYAy23FjTEDg
    VioN4EWtaAIl1IB5

    • Remove 2 screws from each speaker, 4 screws in total, using a Phillips #00 screwdriver.

    • The screws shown in the picture are the more common 4.76 mm.

  6. WmqMSMxi1vay6JYj
    WmqMSMxi1vay6JYj
    ZOeIyNrhWuce5GtX
    bFNtJWA1e2hjSaRI

    • Using tweezers carefully lift the connector up to disconnect it from the motherboard.

    • Using tweezers carefully pull the speakers up and out of device.

  7. VWqQkMOhEkmhgDTU

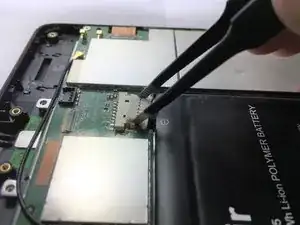

    • Use the tweezers to carefully disconnect the power cable bundle from the motherboard.

  8. nLvBpIoNPeoaf64f
    nLvBpIoNPeoaf64f
    ALxbSrbJ5jL11ycA

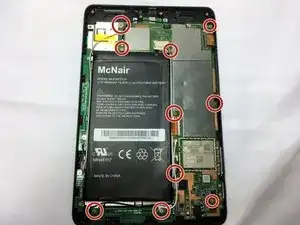

    • Use a Phillips #0 screwdriver to remove the 10 screws from the motherboard.

    • The screws shown in the first picture are the more common 4.76 mm.

    • The screw shown in the second picture is shorter, 3.175 mm, than the rest of the screws

  9. ASyYTQDP5XWlurUm
    ASyYTQDP5XWlurUm
    YqZffH5QUdFdFgve

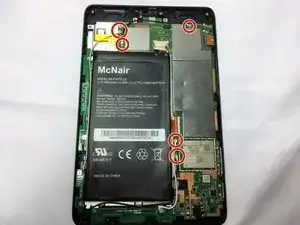

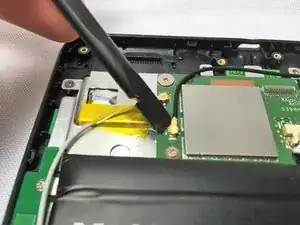

    • Remove the 5 antenna cable connectors from the motherboard using a spudger.

  10. yYRqdcFiwTBd2bKd
    yYRqdcFiwTBd2bKd
    APqCtQSoGKYqacta
    KTZxAjSS6RRmEQ4j

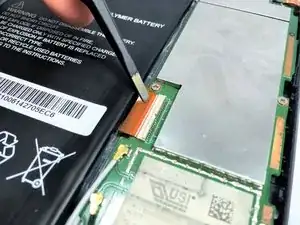

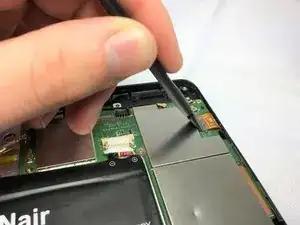

    • Disconnect the two ZIF connectors that are connected to the motherboard with a spudger. Lift up the metal part of the connector and then pull the connector off of its port

    • Once disconnected pull away from its connector carefully with tweezers.

    • Once the connectors have been disconnected you can gently lift up on the motherboard to remove it from the device.

  11. MVHtw1RqdSNLZMgA
    MVHtw1RqdSNLZMgA
    4ZcUYhXGsHPeTque
    GTpqZttbnpiQkeWV

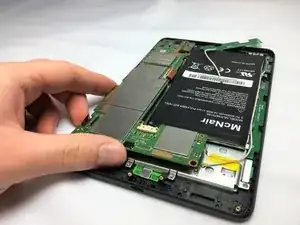

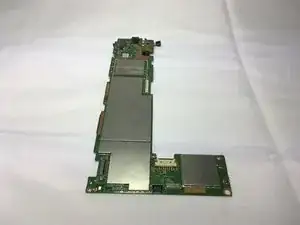

    • Remove the motherboard from the tablet.

    • Use the spudger to disconnect the press lift connector.

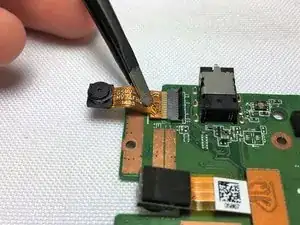

    • Carefully flip the motherboard over. Disconnect the camera at the top of the board using tweezers.

Abschluss

To reassemble your device, follow these instructions in reverse order.
