Verizon Ellipsis Jetpack MHS800L Plastic Case Replacement

Geschrieben von: Richard J Porras
  • Kommentare: 3
Verizon Ellipsis Jetpack MHS800L Plastic Case Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

5 - 10 Minuten

Einleitung

What you can expect from this guide is a step by step process on how to remove the plastic case on a Verizon Ellipsis Jetpack MHS800L.

  1. nDUhiV1CPTOFFYBe
    nDUhiV1CPTOFFYBe
    CxYAf2MYy4OUlXED
    mIokRhMi3gJyvG3D

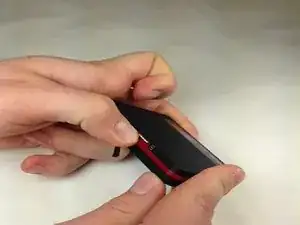

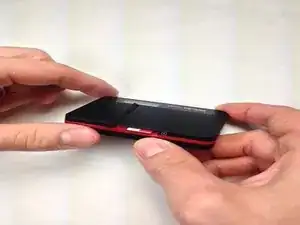

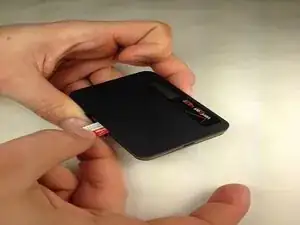

    • Remove the SIM card, that is located on top of the Jetpack.

  2. qVDIevYJWBvB1WWC
    qVDIevYJWBvB1WWC
    K6gMpP5oQq6diKMx
    tOYB52XNHEJ6XEje

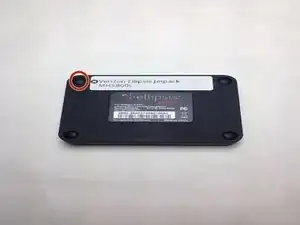

    • With the device on its back and the label facing you, remove the rubber screw cover on the top left corner of the device.

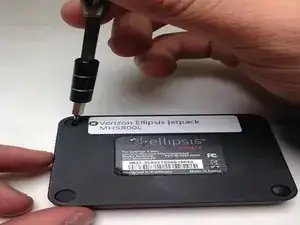

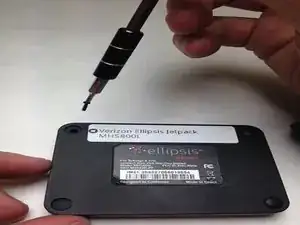

    • Under the rubber circle, remove the 1.25 mm screw using a Phillips #00 Screwdriver.

    • You may need to peel back a piece of double sided tape covering the screw hole.

  3. ySjXfaAlTmL4KrOD

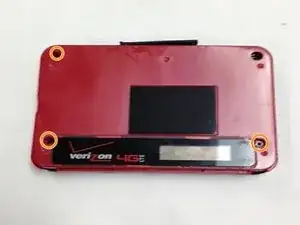

    • Remove three 1.25 mm screws.

    Are steps 3 and 4 reversed? Where are the 3 screws?

    imsonnyburnett -

    Th3 first left corner has a screw but under the cover on the others is just a black circle

    Audrie nelson -

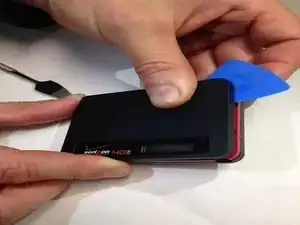

    Yes steps 3 and 4 are reversed. After removing the single screen (Philips #000 works better than #00), flip the device over and follow step 4 to remove the top black cover. Then follow step 3 to remove the 3 screw shown.

    Don Holmgren -

  4. MGSPlyHgGh6TCIft

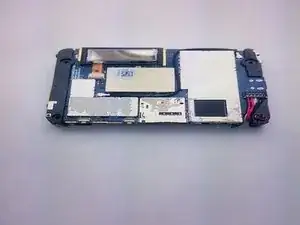

  5. OJlqquxQumeWyaZT

    • Once the cover is off, this is what your device will look like.

Abschluss

To reassemble your device, follow these instructions in reverse order.
