Einleitung

Before tackling the buttons on the hotspot, make sure that the battery, SIM card, and screen are removed. Especially with the screen, make sure the motherboard is completely removed carefully. This guide is very simple and should take you very minimal time to get it out.

  1. CFn4jvkDmJsdjPcP
    CFn4jvkDmJsdjPcP
    vBWqPWTAK2FQP5on
    • Hold the device with your non-dominant hand, looking at the back of the device, taking note of the small notch along the edge.

  2. kQKqAOTAh5lr2mQ3
    kQKqAOTAh5lr2mQ3
    PORvsZtpNZAs5cRt
    • While holding the device with your non-dominant hand, use your dominant hand to gently pry the back casing off the device. The most effective way to do this is by gripping the small notch.

    • If it doesn't come off, try using alternative grips that are the most comfortable for you. Try using your fingernails to pry up at the corner or around the edge of the backing. The case should come off easily.

    • The back should be completely removed.

  3. wUSRFOICAkEeOGXE
    • The battery should now be visible. Gently grasp the edges to lift it out of the device.

    • The device in picture no longer has a battery but a normal device will likely have a battery once opened.

  4. wJJHoLZZN3ATXAlP
    • Now that the battery is out, the SIM Card should be visible. Simply grasp it and pull it out of the device.

    • The device in picture no longer has a SIM card but a normal device will likely have a SIM card once opened.

  5. FZq4pwgGlWmGRyYq
    FZq4pwgGlWmGRyYq
    yHFiLLjdjS5v1KoJ

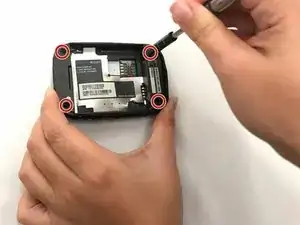

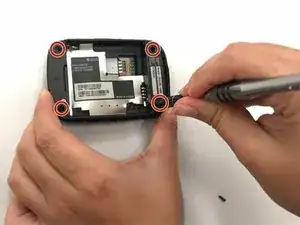

    • Using a Phillips #000 screwdriver, remove the screws found on the four corners of the back of the device.

    • The device pictured is extremely damaged. A normal device should not appear as bent and broken.

    • The screws are very small and may require some patience to get a proper grip.

    Where can I find the screen?

    Erick Reyes Corrales -

  6. 5WkNo3kjMGUVILb2
    5WkNo3kjMGUVILb2
    PLyJctsn2oYNJvbk
    UPriESZTCBKRW4MK

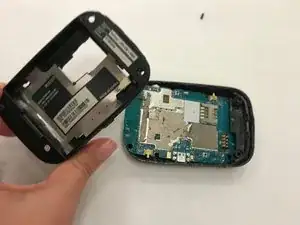

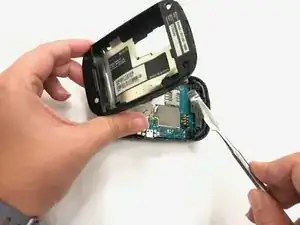

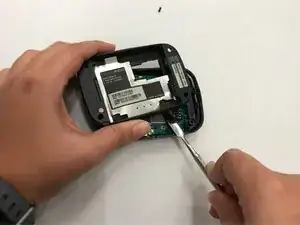

    • Using the metal spudger, pry the plastic casing around the device.

  7. rxWH3BDIcybqREUb
    rxWH3BDIcybqREUb
    GglX16RqukskWKy6

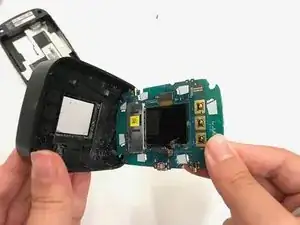

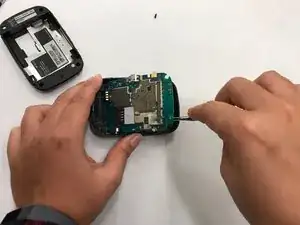

    • Using the metal spudger, gently pull out the motherboard from the plastic casing.

  8. aYpVjfvUlVmjRjBd
    aYpVjfvUlVmjRjBd
    3AEHtNWyuGxfahnL
    GTF3l3ovXdAjuDpV

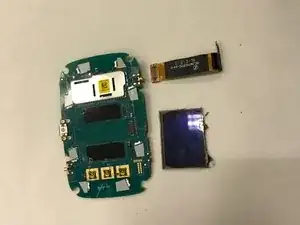

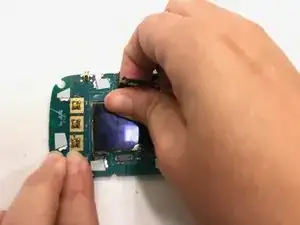

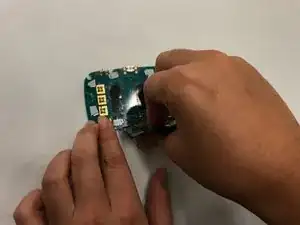

    • Rotate the motherboard so that the screen is facing you.

    • Gently pull up the orange tape to remove the screen.

  9. faDFOBYXMsbxHKya
    faDFOBYXMsbxHKya
    2yebjtetShkhU416
    BpJldlPcnKxjmL6Q

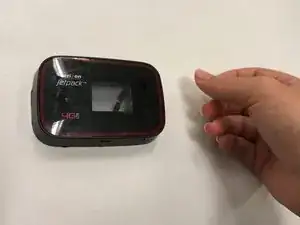

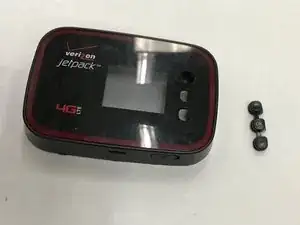

    • Now that the motherboard is out, the buttons should come easily out of what's left of the device. If they do not fall out once the motherboard is out, simply poke the buttons from the front and they should separate from the device.

Abschluss

To reassemble your device, follow these instructions in reverse order.
