Verizon Wireless CDM 7075 Keypad Replacement

Geschrieben von: Corey Ryman
  • Kommentare: 0
Verizon Wireless CDM 7075 Keypad Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

Make sure you have followed the prerequisite guide of removing the battery before proceeding with this guide.

  1. tZGGEQcT6rEUwJbo
    tZGGEQcT6rEUwJbo
    ibZjf3gRmsSPggLN

    • Remove the back panel by first pressing and holding the gray button on the back. While doing that also press and slide the panel down and off.

  2. It1pcr15xXcrRHmW

    • Carefully remove the battery from the phone by prying the battery from the top.

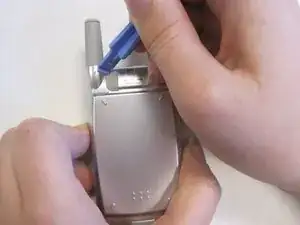

  3. fLQBem3Ay5JNMFlU

    • Pry off the top cover on the back of the phone.

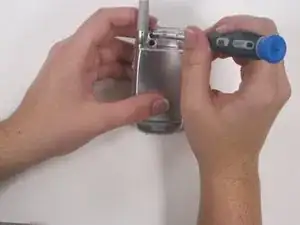

  4. KUaXQbV3jEUAIQwZ

    • You will then remove the screws from the back of the phone.

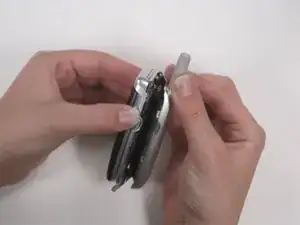

  5. UdHT3wV1qsyXEuxn

    • Next you will pry apart the two halves of the phone.

    • Make sure you do not to damage the ribbon cable connecting both halves

  6. ibCaAtRLIoXhMT5b

    • Then use the plastic opening tool to remove the motherboard from the front half of the phone.

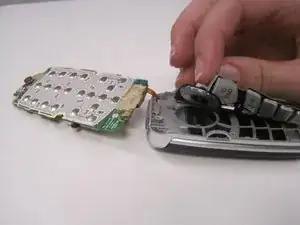

  7. VoktZ3ZJ2NjAY2bb

    • Next you will peel off the keypad after the motherboard is removed.

    • Be sure you do not to tear the brown connector tape.

    • Lastly insert the new keypad.

Abschluss

To reassemble your device follow these instructions in reverse order.
