Verizon Wireless CDM 7075 Screen Replacement

Geschrieben von: Corey Ryman
  • Kommentare: 0
Verizon Wireless CDM 7075 Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 15 Minuten

Einleitung

This guide shows how to replace a screen for a Verizon Wireless CDM 7075. This repair will be needed when the screen is damaged.

  1. tZGGEQcT6rEUwJbo
    tZGGEQcT6rEUwJbo
    ibZjf3gRmsSPggLN

    • Remove the back panel by first pressing and holding the gray button on the back. While doing that also press and slide the panel down and off.

  2. It1pcr15xXcrRHmW

    • Carefully remove the battery from the phone by prying the battery from the top.

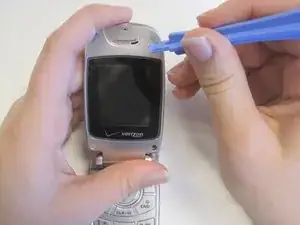

  3. dJJgPyALBQplp5ka

    • Remove the rubber plugs from the screw holes around the screen with the opening tool.

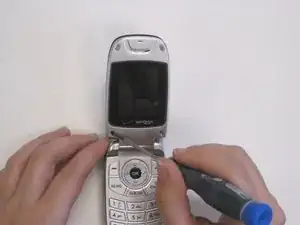

  4. Of4ywx2ljQOgPTnN

    • Remove the four screws from around the phone's screen with a Phillips screwdriver.

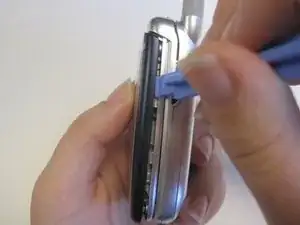

  5. wSWfFFqEWXVqlUna

    • Pry the top cover off the phone with a plastic opening tool.

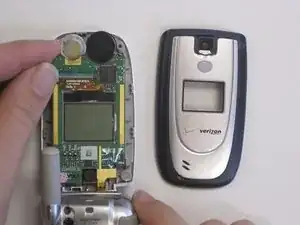

  6. wVAr64erRBuLvNaM

    • Remove the screen assembly from the phone.

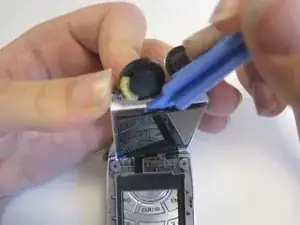

  7. gDGa5j1uHxGTuyMl

    • Pry the circuit board off of the screen with the opening tool.

Abschluss

To reassemble your device, follow these instructions in reverse order.
