VersaMed iVent 201 Power Pack Replacement

Geschrieben von: Jeffrey Yin
  • Kommentare: 0
VersaMed iVent 201 Power Pack Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

20 Minuten

Einleitung

This guide provides detailed steps on replacing your device’s power pack. For more information on replacing the power pack, please refer to page 144 in the service manual.

  1. rSumCZ46ljUShtGw

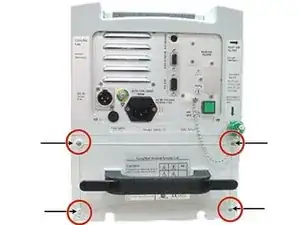

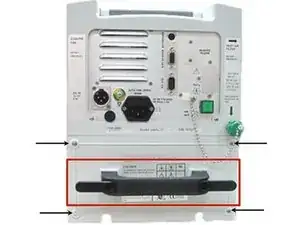

    • Remove the four 3mm x 20mm Phillips screws located on the corners of the power pack.

  2. QjffbZfJ5xVneWmC

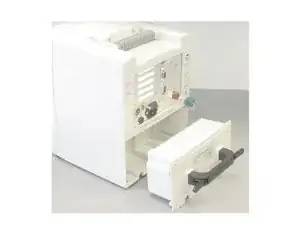

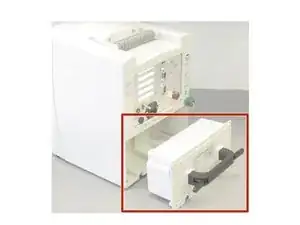

    • Pull the power pack from the compartment using black handle.

  3. jVNM2cyODWJDSRKg

    • Remove the five 3mm x 10mm Phillips screws and washers from the back of the power pack. Lift off the cover after.

  4. NYTGHGBrnDVC5Fin

    • Turn the battery pack upside down and take the battery out of the casing.

    • When reassembling, listen for the sound of the cooling fan for confirmation that the connection was successful.

  5. kHJvBSABfwQsADKG

    • Remove the two spade connectors using pliers.

    • When assembling the power pack, MAKE SURE to connect the red wire to the positive terminal and the black wire to the negative terminal of the battery.

Abschluss

To reassemble your device, follow these instructions in reverse order. Caution: MAKE SURE THE RED WIRE IS CONNECTED TO THE POSITIVE TERMINAL AND THE BLACK WIRE IS CONNECTED TO THE NEGATIVE.
