This guide aims to remove the metal top cover of the ventilator.
Removing the Metal top cover is discussed in service manual revision D:
- Chapter 4: Assembly and Disassembly, Pg 52-53
PLEASE NOTE: This repair guide was developed by a student iFixit team based on Viasys/CareFusion's own service manual. Neither iFixit nor this repair guide is endorsed by or affiliated with Viasys or CareFusion.
Werkzeuge
-
-

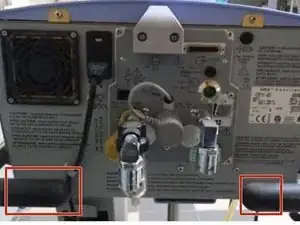

Remove the ‘rubber collar’ located at the UIM rear neck, by grasping one of the two rubber tabs at the bottom. Pull firmly in an “arcing” motion.
-
-
-
Pull UIM forward and look for the Phillips Screw on the front arm cover. Remove (1) Phillips screw from the front arm cover. Remove the front arm cover.
-
-
-
Remove the two mounting screws now visible inside the ‘back arm cover’. Tilt the UIM down and remove the ‘back arm cover’.
-
-
-
Remove the (4) 11/32 KEP nuts that secure the ‘plastic top cover’ opening onto the chassis.
-
Remove (2) Phillips screws that secure the ‘plastic top cover’ to the rear chassis.
-
Slide the top ‘plastic top cover’ upward and forward away from the chassis.
-
-
-
Remove the (2) Phillips screws and washers that secure the HSSC Cable on the GDE. Unplug the HSSC Cable.
-
Carefully feed the HSSC Cable through the ‘plastic top cover’ opening.
-
-
-
While continuously supporting the UIM, remove (4) 3/8 nuts that fasten the UIM support arm onto the pneumatics.
-
Lift UIM off of pneumatics and set aside.
-
Remove plastic cover and set aside.
-
-
-
Check to see if the exhalation filter assembly is installed, if it is, remove the exhalation filter assembly.
-
Rotate the metal locking lever on the lower right of the ventilator body forward to an open position.
-
Remove the exhalation filter assembly from the ventilator body by pulling straight down.
-
-
-
Using a long Phillips screwdriver, remove the Phillips screw located at the top of the exhalation filter assembly well, if applicable.
-
-
-
Using a long Phillips screwdriver, remove the Phillips screw located at the exhalation port marked EXH, if applicable.
-
-
-
Using a long Phillips screwdriver, remove the Phillips screw from the outside of the plastic cover.
-
-
-
Using a long Phillips screwdriver, remove the Phillips screw on the font left wall.
-
Using a long Phillips screwdriver, remove the Phillips screw on the right side of the wall.
-
Set the plastic cover aside.
-
-
-
Using a long Phillips screwdriver, remove the 3 Phillips screws on the metal re-enforcement cover, if applicable, and set aside.
-
Remove the Exhalation Corner Assembly.
-
-
-
Locate metal top cover
-
Remove the 19 SEMS screws, (3) on the left side (5) on the right sife and (11) on top.
-
-
-
Remove metal top cover and set aside.
-
Disconnect the internal battery 2 pin Molex connector
-
To reassemble your device, follow these instructions in reverse order.
