Einleitung
The O2 and Air/Heliox filters are accessible from the rear panel of the ventilator. According to the service manual, the filters should be inspected and replaced as required.
PLEASE NOTE: This repair guide was developed by a student iFixit team based on Viasys/CareFusion's own service manual. Neither iFixit nor this repair guide is endorsed by or affiliated with Viasys or CareFusion.
Replacing these gas filters is discussed in service manual revision D:
- Chapter 8: Preventative Maintenance, Pg 163-164
Werkzeuge
Ersatzteile
-
-

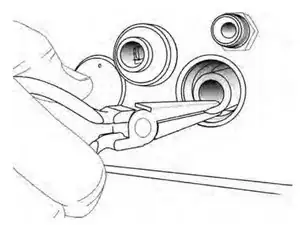

Use the needle nosed pliers to grab the filter and pull straight out of the filter port.
-
Repeat for the second filter.
-
-
-

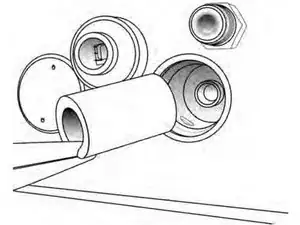

Using the needle nosed pliers, grab a new filter and slide it into the port so it is correctly aligned.
-
Repeat for the second filter.
-
-
-

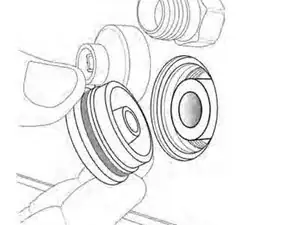

Align the filter cover with the filter inside the port and screw back on.
-
Repeat for the second filter.
-
