Viewsonic gTablet UPC300-2.2 Battery Replacement

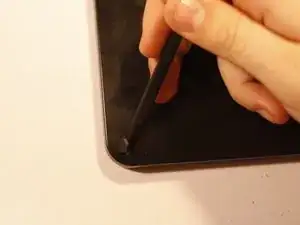

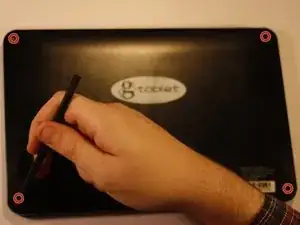

Using your spudger or metal tweezers, work the rubber screw covers out of their sockets, found on each of the four corners of the back cover.

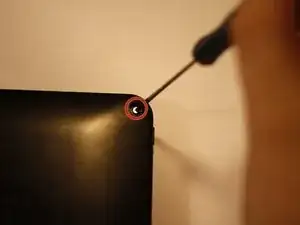

Using a PH00 screwdriver, remove the 5.8mm screws found beneath each rubber cover (4 total).

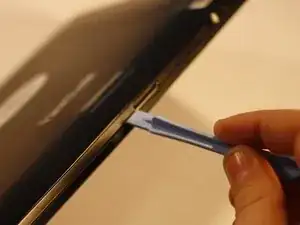

Using the flat end of your prying tool, work the back cover away from the rest of the gTabet.

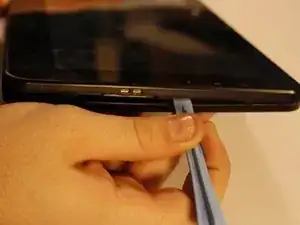

Starting near the charging port, work in one direction around the perimeter of the device.

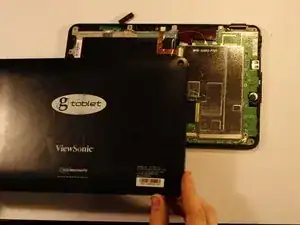

Lift off back cover to reveal the interior of the device.

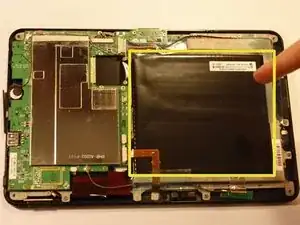

The battery is the large black square that dominates much of the device interior.

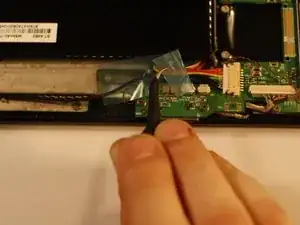

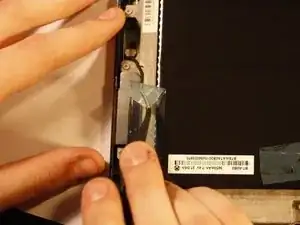

There is tape holding several wires in place. This must be removed before the battery can be removed. Peel it gently; you will want to use it later.

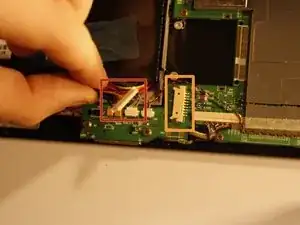

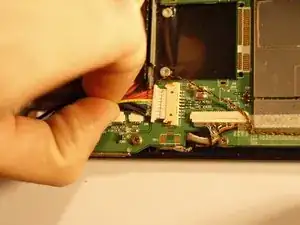

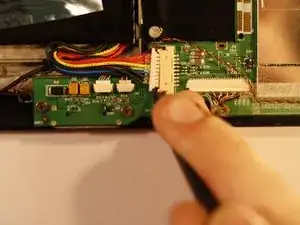

Using a PLASTIC tool of your choice, push both ends of the power cable connector, one at a time, away from its housing. This will slowly wiggle the connector out of place.

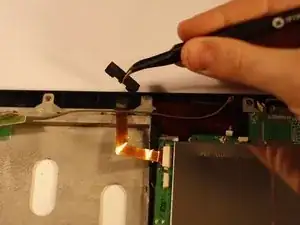

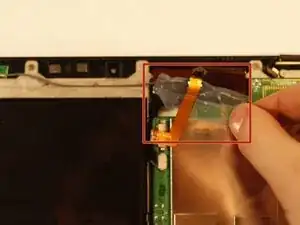

Using tweezers, remove the protective foam backing arch from the front-facing camera.

Pull the camera out of its housing and move it aside.

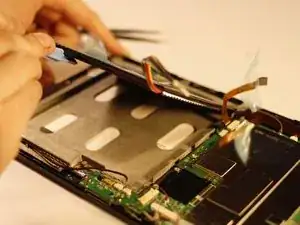

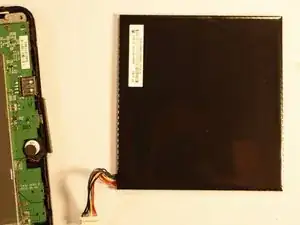

Gently lift the battery up and away from the rest of the device and set it aside.
