Violin Bridge Replacement

Schwierigkeitsgrad

Very easy

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

Every violin player faces the task of changing the bridge. With very few detachable pieces on a violin, changing the bridge is one of the most essential tasks for a violin player to know. This task includes loosening the strings, removing the old bridge, prepping the new bridge with markings for strings, setting the new bridge, and retightening the strings.

  1. BxRyyMaYFMIVJLPE
    BxRyyMaYFMIVJLPE
    u3S3A4kyCUhnD2ZL

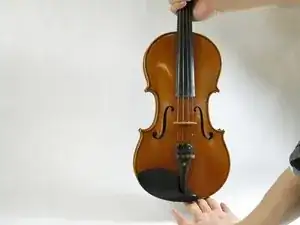

    • Identify two sides of your violin. The violin bridge has one side that is higher than the other. The lower side is the E-string side.

    • E-string side

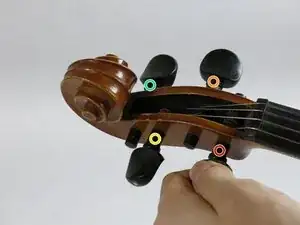

  2. 4XhmuVhZvAcS13w1
    4XhmuVhZvAcS13w1
    WdwRGYs53MOAfrAR

    • Loosen the strings gently starting with the G-string and the E-string, then the D-string and the A-string.

    • G-string

    • E-string

    • D-string

    • A-string

    • Only loosen the strings until you can easily remove the bridge from under the strings without having to drag the bridge out.

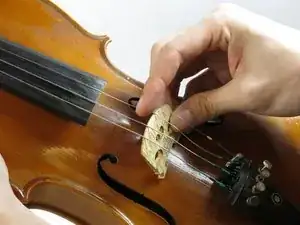

  3. n6HEJ62FBqWbD6Ya
    n6HEJ62FBqWbD6Ya
    hAqUORQDgibpJKfr

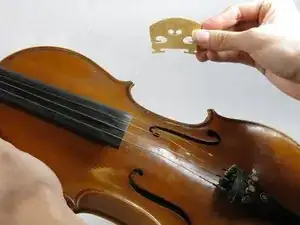

    • Remove the bridge gently from the violin.

  4. SBVyx3tUNtORXQGd
    SBVyx3tUNtORXQGd
    MPCrSZoVi1i5RKOh

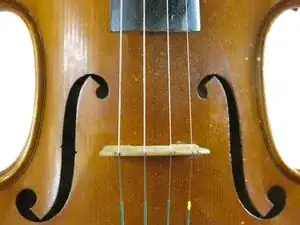

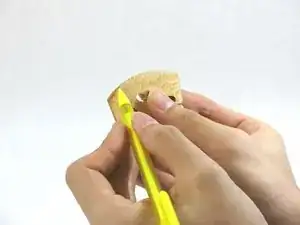

    • Mark the New bridge: Use a pencil or other marking tool to add 4 light marks where the 4 strings sit on the top of the new bridge.

    • The width should be wide enough so that when you are playing on only one string the bow won't produce noise from adjacent strings.

    • The width should also be narrow enough so that, when you are playing on two strings at the same time, you can use one finger to press on both these two strings without much difficulty.

    • Suggested horizontal distance between adjacent strings is 9-12mm. Adjust it based on your finger width. You can also use your old bridge as a guide for where to make marks if you please.

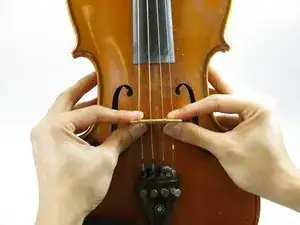

  5. yDpQScfVkVWGHU1a
    yDpQScfVkVWGHU1a
    T4QKXGnybuvTe1CW
    uNSts16uJVcg3NU6

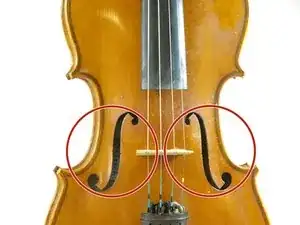

    • Place the new bridge between the center of the f-holes of your violin.

    • f-holes

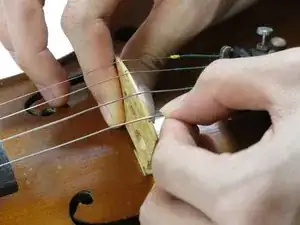

    • Put the strings on your new bridge, align them with the marks you made in step 4.

    This is WAY too simple. You need to fit the feet first and then measure the string height off the fingerboard individually for each string. Bridge replacement should be done by a professional. You can do a ton of damage without doing it right and this is all wrong!!!

    fiddleronthehoof -

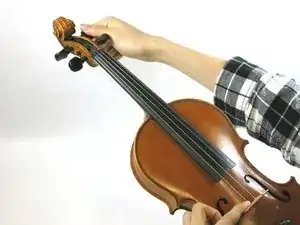

  6. dVTljgEASGsIQUtn
    dVTljgEASGsIQUtn

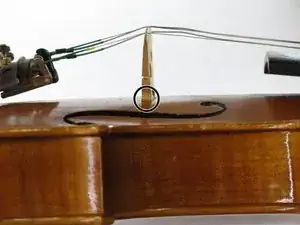

    Vn2SfkESXfcdiacL
    SSEPSR3sGCGhoAyf

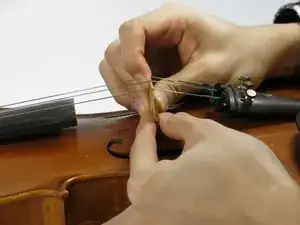

    • Hold the bridge in one hand and tighten the strings in the reverse order you loosened them. That is, tighten the A-string and D-string first, and then, tighten the E-string and G-string. Tighten until each string matches its rough standard pitch (violin tuner suggested).

    • Continue to adjust the bridge to keep it perpendicular to the violin body every time you tighten the string so it is not leaning too far away from the f-holes.

    • After tightening all four strings, play a little to test the string placement. If the distance between the strings is not comfortable for performance (as noted in step 4), repeat step 2-6 and adjust the distance between the strings on the bridge again to find the proper distance.

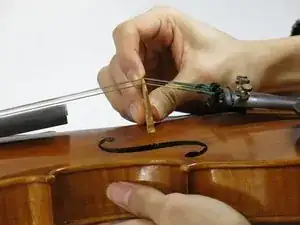

  7. KNTgn5eQyaRnZYS1
    KNTgn5eQyaRnZYS1

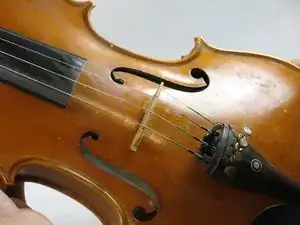

    nijV2d43NhZyWSSl

    • Finally, make any last adjustments to the bridge. Ensure that it is nearly perpendicular to the violin body. Also make sure that the feet of the bridge sit flat on the body of your violin.

Tinte & Feder

fldees

Mitglied seit: 26/10/17

155 Reputation

4 Kommentare

Thanks for this guide. The bridge is considered to be an important part of the instrument and also said to be a soul of the instrument and its sound. The bridge should be always straight and perpendicular to the surface of the instrument. For some people, it may be difficult to replace the bridge all by their own, therefore it is necessary to take the violin to a violin shop where an experienced technician can either fix or replace the bridge. While the bridge is small and light, the way it is set up makes all the difference as far as how the violin will sound.

DellaBarnett -

Feet of the bridge must be fit. Bridge thickness adjusted. String heights are individual. This should only be done by a professional. This method is way too simple to make a bridge that is safe and actually functional for you violin.

fiddleronthehoof -

Agreed. And if the sound post falls over, good luck.

I would also debate the claim that this is one of the most essential tasks, and one that every violin player faces.

Patrick -

Help!!=( I dont know how to fix it!!

Vienna Davis-Friant -
