Visual Land Prestige 7L Front Facing Camera Replacement

Geschrieben von: Greg Azzalina
  • Kommentare: 0
Visual Land Prestige 7L Front Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

30 Minuten

Einleitung

If your camera is not working, you may need to replace it completely. Following this guide will allow you to do so.

  1. FFjnmhnHcLiSBsyO
    FFjnmhnHcLiSBsyO
    4ThhLqK2W4u1NwWD

    • Remove the two 8mm Phillips Head screws located at the bottom of your device.

  2. JC6bFVXUpTD2FcyD
    JC6bFVXUpTD2FcyD
    KjQQMSpJdIfU6mXe
    JRFUHDMxvBAQcBLo

    • Insert the spudger between the two pieces of the case around the media ports and pry them apart.

    • We found the best way to get the spudger inside the case was to insert in into the SD card slot. Be sure to only insert the spudger a shallow amount and be careful not to damage any of the inside of the device.

    • Finish unsnapping each plastic piece holding the device together along the bottom.

  3. YBnRGCBLbarhLZV2
    YBnRGCBLbarhLZV2
    6yHCNlOZPDylbD6r
    nYCeIWPycRgT3MQH

    • Move the spudger down the rest of the case, separating each side, and finally the top.

    • Pull the back off and place it to the side.

    • Without a back panel for protection, be sure place your device on the table screen-side down to avoid damaging the internal circuitry.

  4. ALY4lnTLAEExG36h
    ALY4lnTLAEExG36h
    WtcuP2THOpIdDmvW

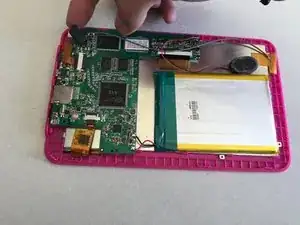

    • Remove the adhesive padding.

  5. JFhrpu2PBG36XjI1
    JFhrpu2PBG36XjI1
    Bdg3fHhKPNAFWSTR

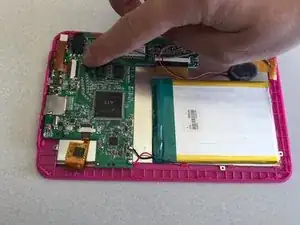

    • Unclip the connector that attaches the camera to the motherboard.

    • For more information on unclipping connectors see this How To Guide

    • Do not pull on the camera until you're sure that it's unclipped, the gold connection will rip.

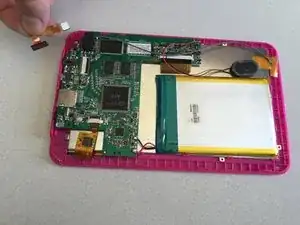

    • Gently pop the camera out of the connector and off the case.

Abschluss

To reassemble your device, follow these instructions in reverse order.
