Einleitung

Complete the following guide to replace the power button and the volume buttons on the side of your tablet.

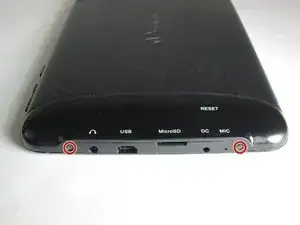

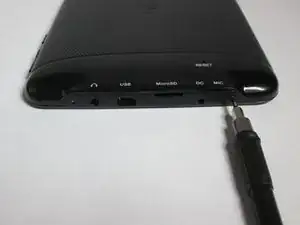

  1. grMEJqVL45rDTQUP
    grMEJqVL45rDTQUP
    omjyUEfWvddSUifD
    • At the bottom of the tablet, remove the two 3.6mm screws with a Phillips #000 screwdriver.

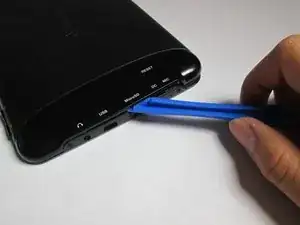

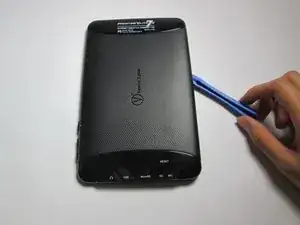

  2. QdZVt2o25l2AaggQ
    QdZVt2o25l2AaggQ
    MrHqRyEexNDHSKim
    • Wedge a plastic opening tool into the edges of the tablet to pry it open.

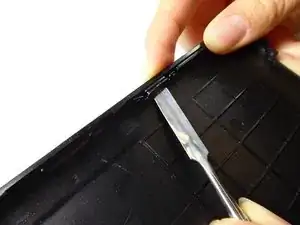

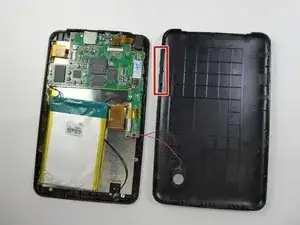

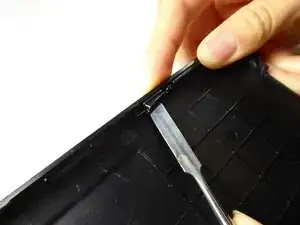

  3. wbyjjKONa2RME6ns
    wbyjjKONa2RME6ns
    C1CLNIKnuUUMCOWm
    oTY4bwdTU4ndcqoZ
    • Using a metal spudger and/or your fingers, press the power button in and lift the outside tab.

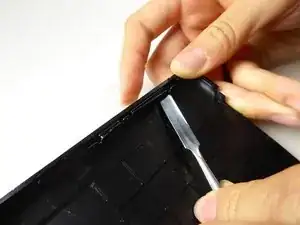

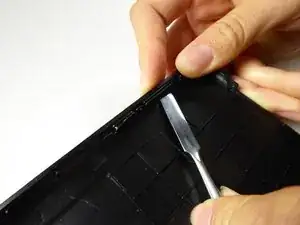

  4. GERDnnJZsleaVfqj
    GERDnnJZsleaVfqj
    eQVcOxAGvOxPlA5o
    • Using a metal spudger and/or your fingers, press the volume button in and lift the outside tab.

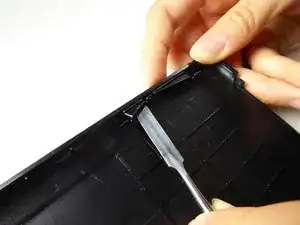

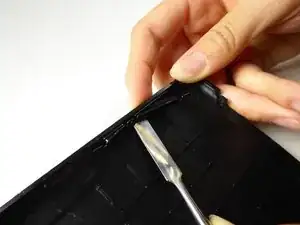

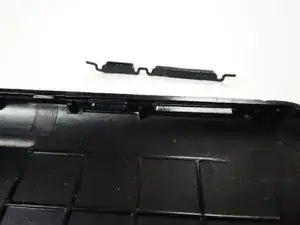

  5. 6YDBR45V3WsGBCZO
    6YDBR45V3WsGBCZO
    TYqkLAEQYDqfEoKa
    3sydvhNxknN4SkvR
    • Using the metal spudger, dislodge and lift the power and volume buttons

Abschluss

To reassemble your device, follow these instructions in reverse order.
