Vivitar DVR 781HD Front Case Replacement

Begin with the camcorder lens up on a clear working surface.

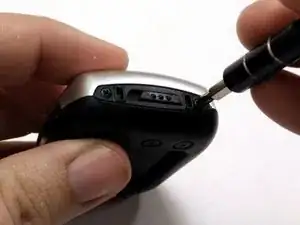

Remove the two 4mm Phillips #1 screws holding the switch plate in place. Rotate the device 180 degrees and repeat for the screws on the opposite side.

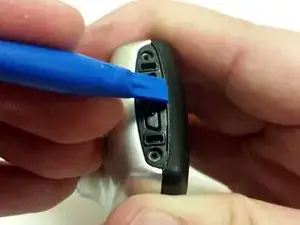

Slide the plastic opening tool into the seam between the front and back sections of the case and apply a small amount of force to pop the case open.

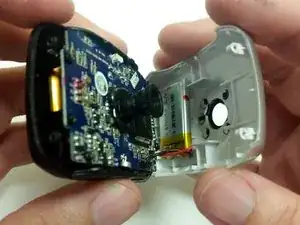

Move the plastic opening tool around the seam and apply force at each step to separate the front plate from the back plate and motherboard.

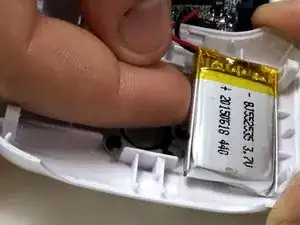

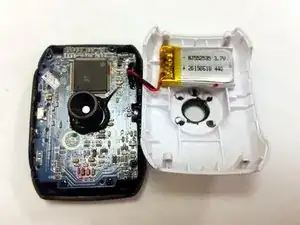

The battery is held to the front half of the case with double-sided tape. Peel it up with a finger, being careful not to damage the battery.
