Vivitar DVR 781HD Waterproof Case Lens Cover Replacement

Geschrieben von: Jordan Baum
  • Kommentare: 2
Vivitar DVR 781HD Waterproof Case Lens Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

This guide provides instructions for removal of the glass lens cover on the front of the camcorder's water proof case. There are small screws and a glass part in this repair, so have a clean work space and keep the case on a flat surface to avoid losing screws or dropping the glass lens cover.

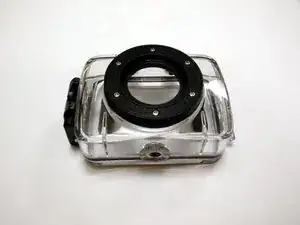

  1. TpnGrqlRI3VBjVFJ

    • Place waterproof case on flat surface, with the lens cover facing up.

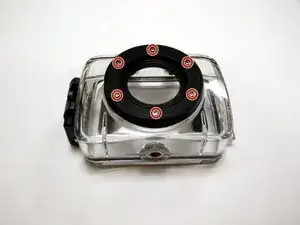

  2. V2VkHHRJb2ZXOgIr
    V2VkHHRJb2ZXOgIr

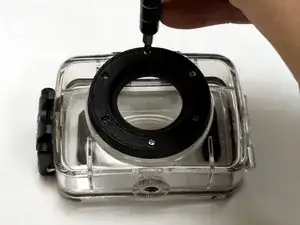

    IwVDPjcKkEs1uVRb

    • Remove the six 4.5mm Phillips #00 screws from the black lens cover trim.

    Saya minat dengan cas nya gmna cara pesannya gan

    Longor87 Qwertyuiop -

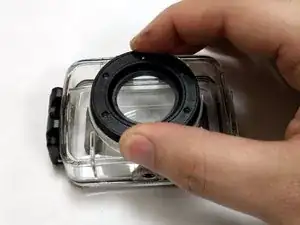

  3. Dl1A2FqpF6ClegIL
    Dl1A2FqpF6ClegIL
    NDjPoA2AqIAqFCjn

    • While holding the black lens cover trim tight to the case, flip the case over so that the lens cover is rested on your work surface.

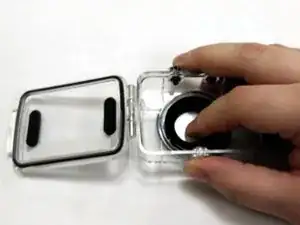

  4. uLtRB5XpdH13LlSp
    uLtRB5XpdH13LlSp

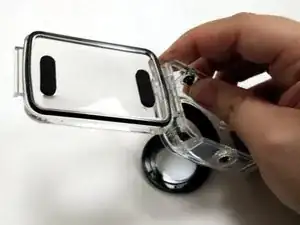

    e2bv4CKFICsATqNO

    • Apply pressure to the lens cover with your thumb, and use your other fingers to pull up on the case, separating the lens and lens trim from the case.

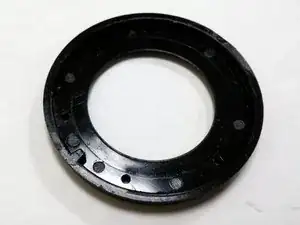

  5. SHIfET5qIAXAPqL3
    SHIfET5qIAXAPqL3

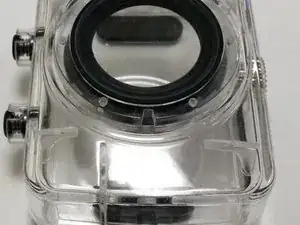

    KaXIBrXqHEA4VQwD

    • There is a small plastic key on the black bezel that aligns it to the case. Be sure to line this up during reassembly.

Abschluss

To reassemble your device, follow these instructions in reverse order.
