If the screen on your Vivitar Vivicam T027 isn’t giving you the full picture because it’s scratched, cracked or otherwise damaged, use this guide to replace the 320 x 240 pixel 2.7” TFT LCD Display screen.
Having a clear, fully functional screen helps you take and view the best pictures possible. Don’t let a damaged screen come between you and great pictures.
Before using this guide, gather the tools you will need for the project and ensure you have a clean, clear work area. This will make it easy to keep track of all the parts and pieces you’ll be working with. Using a small white towel will keep tiny screws from rolling away from you and make them easy to see.
Don’t forget to remove the batteries from the camera before starting!
Werkzeuge
-
-

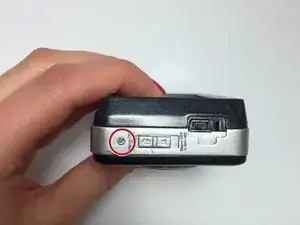

Remove the sticker on the top of the camera. This sticker covers a screw.
-

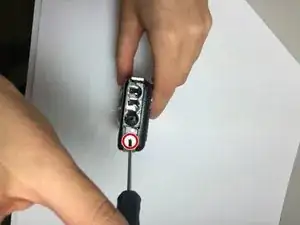

Remove five screws on the sides of the camera, including the screw under the sticker.
-
-
-

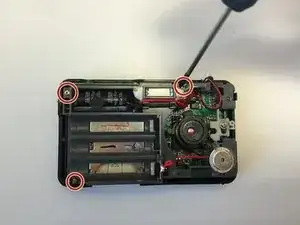

Remove the three 2 mm screws holding in the gray plastic cover, using a Phillips #00 screwdriver.
-
-
-

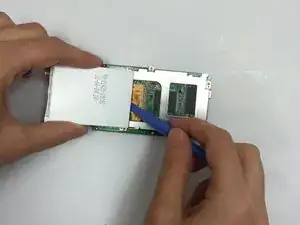

Carefully remove the gold film from the screen with a plastic opening tool.
-

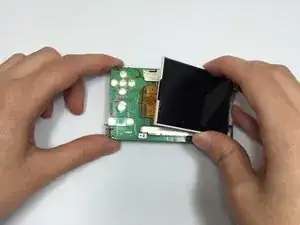

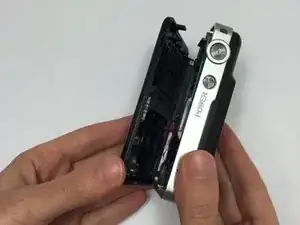

Gently pull the screen off the camera.
-
To reassemble your device, follow these instructions in reverse order.
