Einleitung

Over time the frame counter in the camera will become loose. When this happens the user will not be able to tell what frame they are on when taking photographs. This leads to wasting film or ripping the film off the canister. This guide will show how to adhere a loose frame counter so the user can go back to shooting photographs.

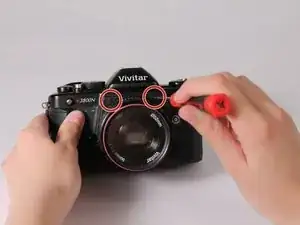

  1. kYHC5SrBBOaRvQKm
    kYHC5SrBBOaRvQKm
    VvBQk4kyAjrrhym2
    IIjduWssOJtWGLjI

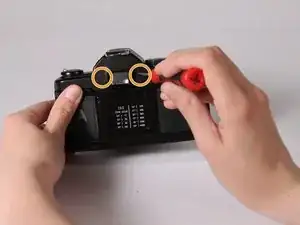

    • Unscrew the front screws on the camera with a Philips screwdriver.

    • Unscrew the back screws on the camera with a Philips screwdriver.

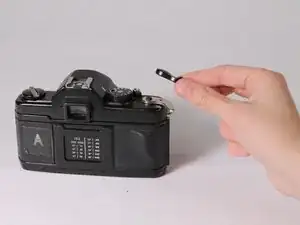

  2. fV1xT3HMUTfo2ULw
    fV1xT3HMUTfo2ULw
    rBSBKXD51JjhkO4E
    PmXGq2wqShDZAFKR

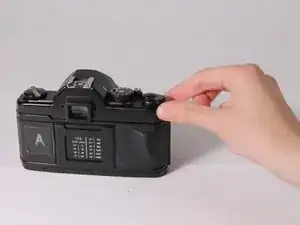

    • Remove the film advance lever by unscrewing the bottom screw with a Philips screwdriver.

    • Remove the plastic cover to uncover the metal lever.

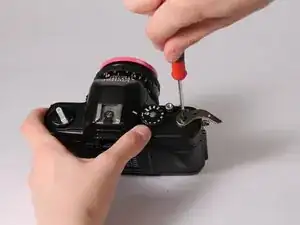

  3. COCwJgELvdSDF2wU
    • Remove the screw holding the metal component of the lever with a flathead screwdriver.

    • Once the screw has been taken off, remove the metal lever.

    • This is a reverse threaded screw. Twist clockwise to remove it.

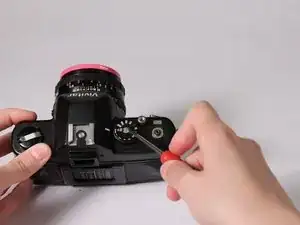

  4. Z6VdCAZgkbhXIfwx
    Z6VdCAZgkbhXIfwx
    cHM5DsVrhsChCuMV

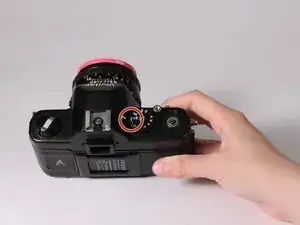

    • Set the speed dial to Bulb mode and the ISO to the lowest setting before taking it off. This makes sure you are at the correct settings when it is placed back together.

    • Carefully put a flathead screwdriver into a notch in the middle of the dial on the center piece and turn it counter-clockwise.

    • Once loosened, remove the speed dial with your hands.

    • Be careful when removing the speed dial! There are several small parts that may fall out.

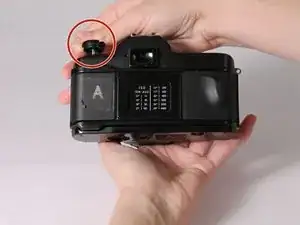

  5. elaGxEa1rIJ6t5AL
    elaGxEa1rIJ6t5AL
    UjrBApIFwGs3dMF5
    4ibMN1QAWUQSqL44

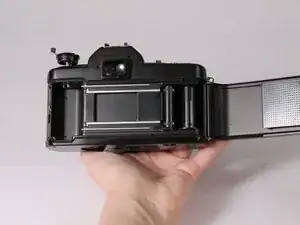

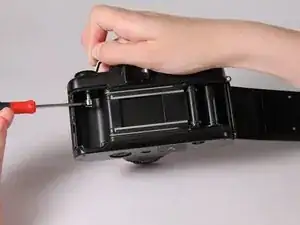

    • Open the camera back by pulling up on the film rewind crank.

    • Once open, push the rewind crank back down and insert a screwdriver into the notch.

    • With one hand holding the screwdriver in the notch, wind the crank counter-clockwise to remove it.

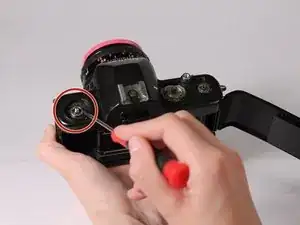

  6. WxsLPvWVvSVZUBUQ
    WxsLPvWVvSVZUBUQ
    jBQObpmGyofkIIhP

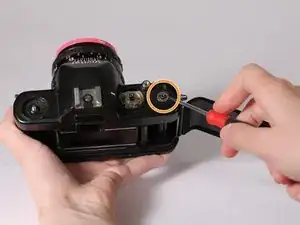

    • With a flathead screwdriver, twist the metal washer counter-clockwise to remove it.

    • Remove the washer underneath the advance lever in the same way.

    • Keep these pieces separate. They look similar but are not interchangeable.

  7. iluRs1AE61nGWunu
    iluRs1AE61nGWunu
    qxwL4AGrdBPxAyPP
    gNKCVFh1VHWRlZ6V

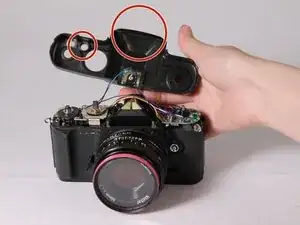

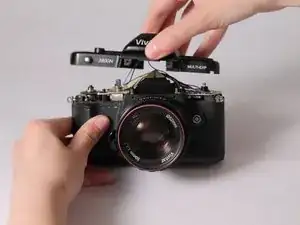

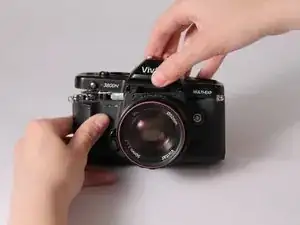

    • Remove top of camera.

    • Set aside the shutter release button and the viewfinder eyepiece.

    • The shutter release button and the viewfinder eyepiece are loose so they may fall out during removal.

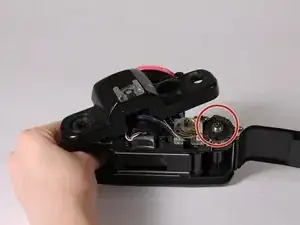

  8. bAGdHmsOKS1RDxAK
    bAGdHmsOKS1RDxAK
    attLuboFGNSMXjyM
    jNDLNlX2sxaeRxwA

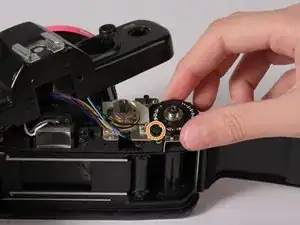

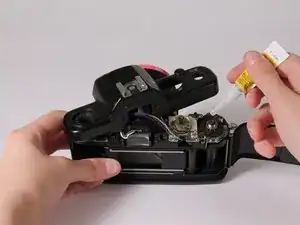

    • Remove the loose frame counter.

    • Apply a small amount of glue to the area and wait approximately 5 minutes for it to dry.

    • Put the frame counter back into place, lining up "26" to the indicated notch.

    • Tip: use a toothpick to apply the glue to ensure you don't glue down any moving parts.

  9. huwyRNOS6KtsCLps
    huwyRNOS6KtsCLps
    hilR2cYPvSRqo23Q

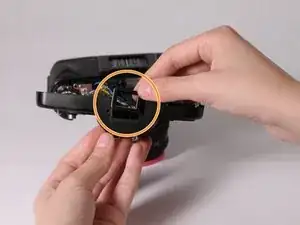

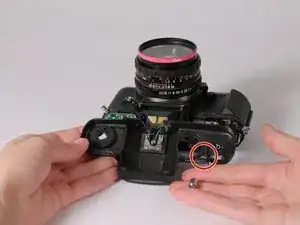

    • Place the shutter release button pieces into the indicated spot. The larger piece goes in first, then the smaller piece fits into that one.

    • Put the view finder back into place by sliding it in as shown.

  10. FipVJpMupEGc1IEj
    FipVJpMupEGc1IEj
    BO4scSoHHyLUNKxn
    • Turn the camera upside down and place the top back on.

    • Make sure wires do not get crushed between parts.

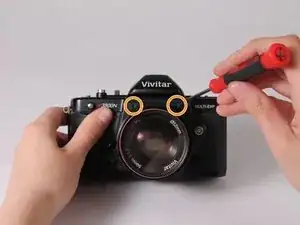

  11. GZNIshUyGLFNflpC
    GZNIshUyGLFNflpC
    txkoPfCYHH1CvaKK

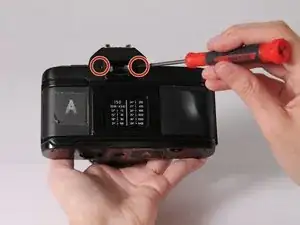

    • Screw in two screws on the back of the camera.

    • Screw in the other two screws on the front of the camera.

  12. cYoRNZqmuGTH4Rtg
    cYoRNZqmuGTH4Rtg
    VlDoQQQi3MjYXAjN
    nCbb6sf2DGKf2PmE

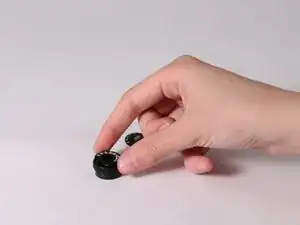

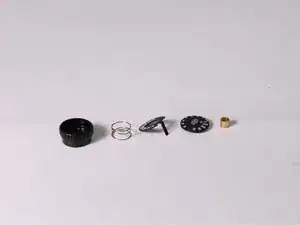

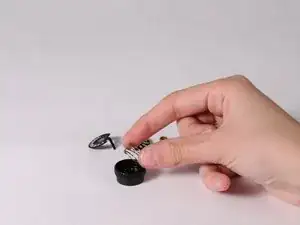

    • Reassemble the 5 pieces of the shutter speed dial.

    • Hold the rest of the dial together with your finger while performing these steps.

    • Place the spring into the dial.

    • Place the lens load indicator on top of the spring.

  13. mwRDw3q2VQjm3brH
    mwRDw3q2VQjm3brH
    hZDWaycLLf4VkSDN
    6nASvbvnO6j2WjZA

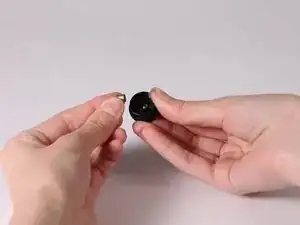

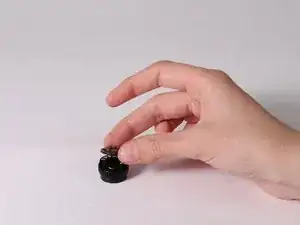

    • Refer to the first image in Step 12.

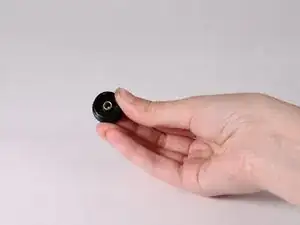

    • Place the top of the speed dial onto the lens load indicator.

    • Place the gold piece into the indicated area.

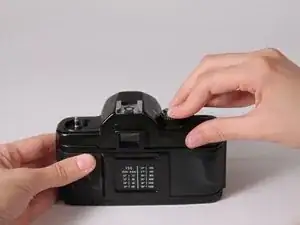

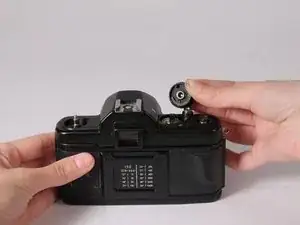

  14. YD4wENDqpiphOG2X
    YD4wENDqpiphOG2X
    Ga6j2ATd36bTAFRP
    Ch2RobmW4pmjavfL

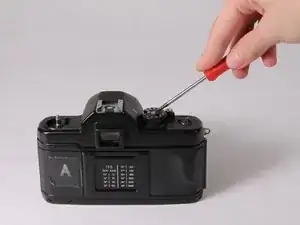

    • Keeping the spring compressed, carefully place the dial on top of the camera that matches the settings you set during step 4.

    • Make sure all the pieces stay together!

    • Tighten the dial by placing a flathead screwdriver into the notch and turning clockwise.

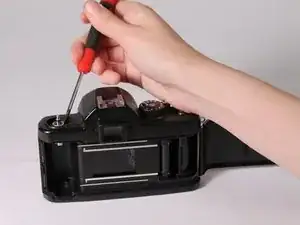

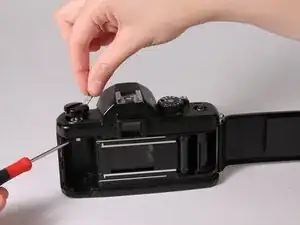

  15. dO1KMLFDwcWNYnGn
    dO1KMLFDwcWNYnGn
    nPe5PdAwmEbCLGeM
    • Place the correct washer back underneath the rewind crank and tighten with a flathead screwdriver.

    • Open the back of the camera and place the screwdriver into the notch.

    • With one hand holding the screwdriver, place the rewind crank onto the peg and turn clockwise until tight.

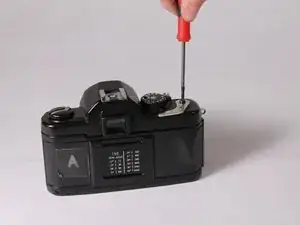

  16. FePWkdUELIXfPops
    FePWkdUELIXfPops
    alKXF3DDnCGQTQco
    PBnIiC5ULKrfE6hO

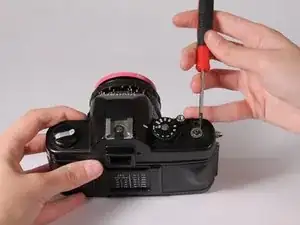

    • Place the washer on the spot underneath the advance lever and tighten with a flathead screwdriver.

    • Place the advance lever on top of the washer and screw it into place using the flathead screwdriver until tight.

    • This is the reverse threaded screw mentioned earlier.

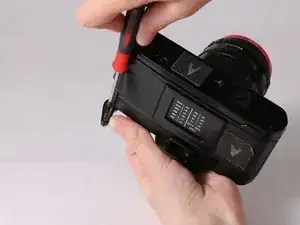

  17. ND2OeEwBSQqoaPl2
    ND2OeEwBSQqoaPl2
    HoMBkHJYeJKcolEe
    RRIjBTIJMxUTDsAH

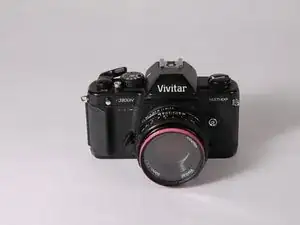

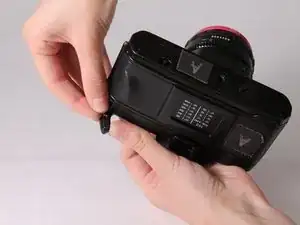

    • Place the plastic cover onto the advance lever and use a Philips screwdriver to place it together.

Abschluss

You're done! Go take some great photos!
