Vivotek FD8169 Camera Module Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. mtudHFdcwvZFL1wl

    • Loosen the outside screw.

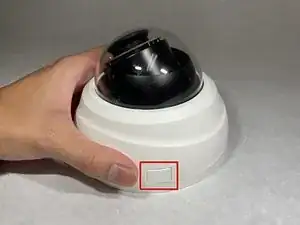

  2. fPAquDoGD5YBXNyR

    • Press down on the side button, and lift up the top dome.

  3. aJEiM1gONiUDZDnD

    • Remove three screws that connect the camera base to the motherboard using a Phillips #1 screwdriver.

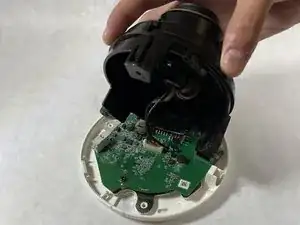

  4. 4QiBjefUAtDwtQkr

    • Lift off the camera base from the motherboard.

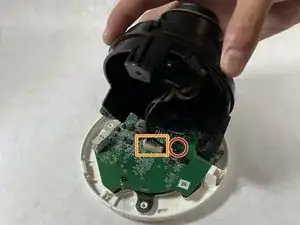

  5. bcJSkEeoyDZGtwKk

    • Unscrew the cord from the motherboard.

    • Unplug the remaining connection.

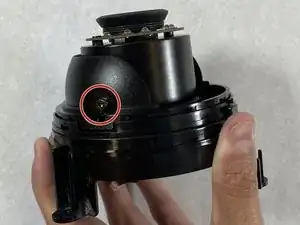

  6. kgXCnYtBtWc33GYV

    • Unscrew the camera from the camera base with a hex screwdriver on both sides.

  7. FrEI6MgtoMpWtTHi

    • Pull the camera out from the camera base.

Abschluss

To reassemble your device, follow these instructions in reverse order.
