Einleitung
This guide will help users remove a broken Vizio CT15 display screen.
Werkzeuge
-
-
Turn the laptop off and remove all power cables.
-
Remove the six Phillips #0 screws.
-
Pull the back cover off.
-
-
-
Use the plastic opening tool or your fingers to pry the battery up and pull it from the laptop.
-
-
-

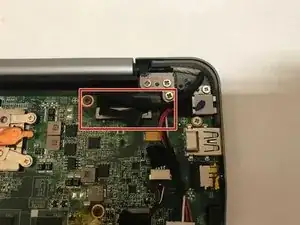

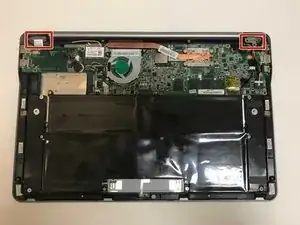

Remove the six Phillips #0 screws.
-

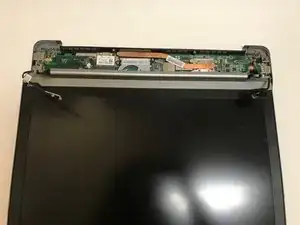

Disconnect the display from the laptop base by pulling the two apart from each other.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
