Vizio CT15 Keyboard Replacement

Geschrieben von: jalon
  • Kommentare: 0
Vizio CT15 Keyboard Replacement

Schwierigkeitsgrad

Moderate

Schritte

13

Zeitaufwand

30 Minuten - 1 Stunde

Einleitung

This guide will help users replace their Vizio CT15 keyboard when the whole keyboard is not responding.

  1. KTxFEEe5UqgEVaFm
    KTxFEEe5UqgEVaFm
    ZiNd6BdvRaGXRmfj

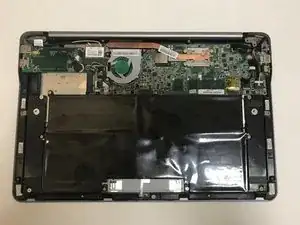

    • Turn the laptop off and remove all power cables.

    • Remove the six Phillips #0 screws.

    • Pull the back cover off.

  2. 2i1UU6ygBBarU6uT

    • Remove the six Phillips #0 screws.

  3. 14W63iVQKfFMnqDt
    14W63iVQKfFMnqDt
    s2TWJqPbVCnDFHvR

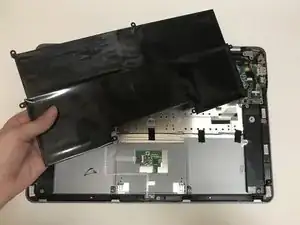

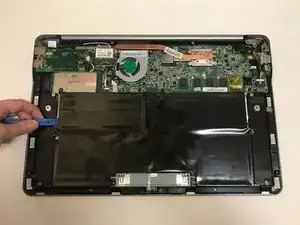

    • Use the plastic opening tool or your fingers to pry the battery up and pull it from the laptop.

  4. BI5k5E6H2nZdt3Rb
    BI5k5E6H2nZdt3Rb
    AihTa3tG5PiFw15E

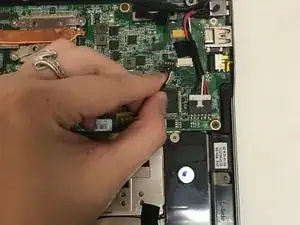

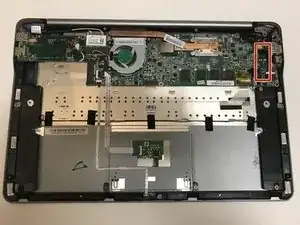

    • Unplug the wire connecting the speakers to the motherboard.

  5. QABKUcXdxRdTsV4B
    QABKUcXdxRdTsV4B
    C6YcSSXTUyevl3xa

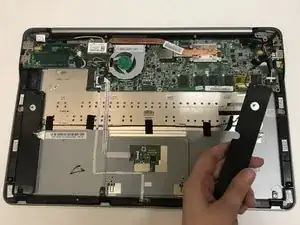

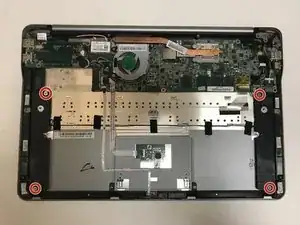

    • Remove the four Phillips #0 screws.

    • Pull the speakers out to remove.

  6. InyJt5HJUPpWPEgZ
    InyJt5HJUPpWPEgZ
    HF3JXubAHigxv15V
    qXOPyNTggxxFMBRW

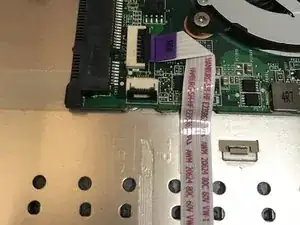

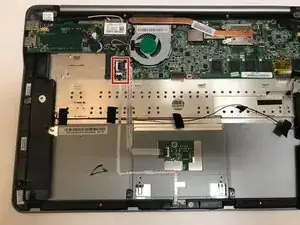

    • Use the flat end of a spudger to lift up the black tab on the ZIF connector.

    • Pull the ribbon cables out of the ZIF connector.

    • These wires are not connected to the speakers. We are only unplugging them to remove the wire underneath.

  7. eqbAAj262f6NovB2
    eqbAAj262f6NovB2
    XgY1gDUYJXyhDpFh

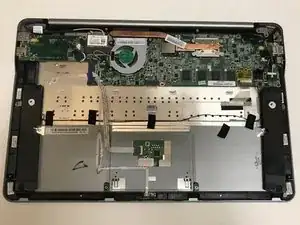

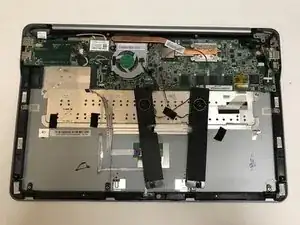

    • Pull off the black strips of tape from the speaker wires and remove the speakers from the laptop.

  8. AOFsZswOoLUd4g1v
    AOFsZswOoLUd4g1v
    fgZqSiNMQRsLmkqC

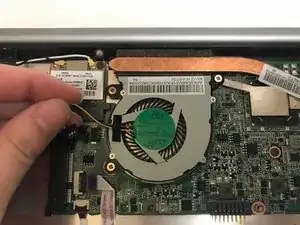

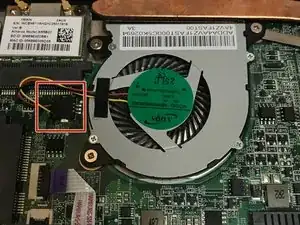

    • Unplug the fan from the motherboard.

  9. ma3oCxJKyDYMB2xa
    ma3oCxJKyDYMB2xa
    dafjcBGraRmJBZKu

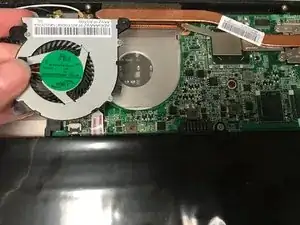

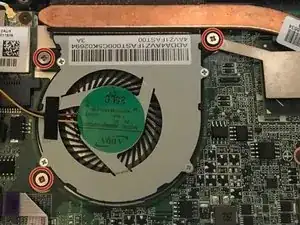

    • Remove the three Phillips #0 screws.

    • Pull the fan out to remove.

  10. ZFekmQrPr1IIJvk1
    ZFekmQrPr1IIJvk1
    NWLmXmRIK4PGdFPu

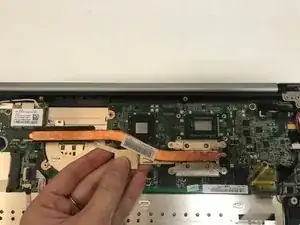

    • Remove the four Philips #0 screws from the heatsink.

    • Pull up and out to remove the heatsink from the laptop.

  11. vBDEsxLskfxddouE
    vBDEsxLskfxddouE
    5NWSZDtPrlqqt5Af

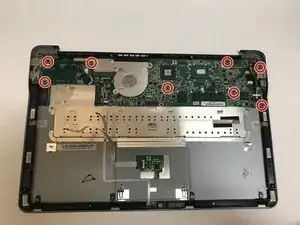

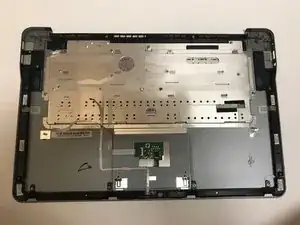

    • Remove the eight Phillips #0 screws from the motherboard.

    • Lift the motherboard up and out to remove it from the laptop.

  12. mJWjqQ1LV2WTP2tB

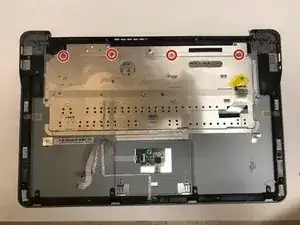

    • Remove the four Phillips #00 screws that hold the keyboard to the laptop case.

  13. inWHvenSWhAjHJOh
    inWHvenSWhAjHJOh
    OdbAqR3TKKXRHiaR
    nVFBUil1jWQNycGo

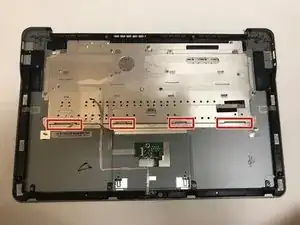

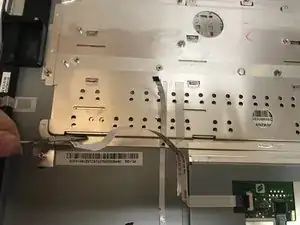

    • Use a metal spudger to carefully push the keyboard out of place.

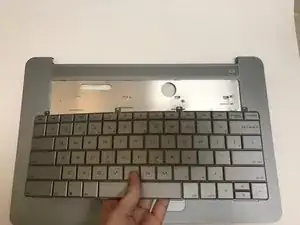

    • Carefully flip the laptop over and pull the keyboard out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
