Vizio VTAB1008 Battery Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

Hello! This guide will show you how to replace the battery in a Vizio VTAB1008.

  1. LnnrJMRsqh6MwLUL
    LnnrJMRsqh6MwLUL
    EO6VhUZHjSu1oNUB

    • Carefully slide the heavy duty opening tool between the gap on the side of the device with no buttons.

    • Do not insert the opening tool too far into the tablet as this can damage connectors close to edges of the cover.

    • The angled tip of the opening tool can be wedged into the device by pressing on the back of the opening tool with the thumb. Move the opening tool in a sliding motion to ensure all tabs separate.

    • Corner tabs may require a more forceful prying tool. If needed, carefully insert the metal prying tool into corners to separate the tabs.

  2. 2SfTgABqUCBKoJCD

    • Look into the tablet for loose connectors.

    • There are three loose connectors: one for the screen, one for the digitizer, and one for the motherboard. They are held in place by the pressure of the backing and screen assemblies.

    • Flip the backing from the button-less side over, being careful not to separate the ribbon connector from the display screen.

  3. pBPKEM4dmJJICsTV
    pBPKEM4dmJJICsTV
    MUiROMMMaKAufiiW
    YGlVZoJwxnQDFIaB

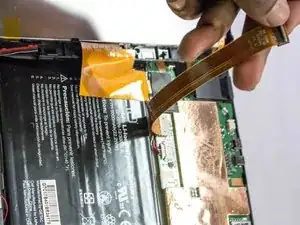

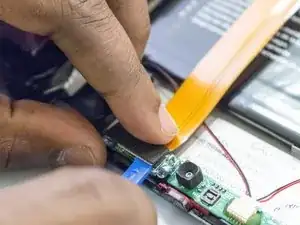

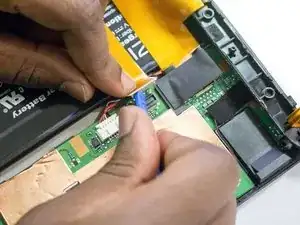

    • Remove the ribbon strip that crosses the battery from both ends.

    • A blue opening tool may be used to assist.

  4. XGWRVOlnXoUZf2GH
    XGWRVOlnXoUZf2GH
    WBXNcE6locy1jE3o

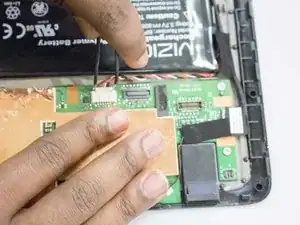

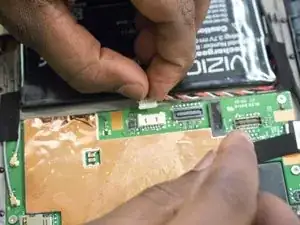

    • Remove the connector at the top of the motherboard by pulling out and away from the motherboard.

    • This is the connector with the wires leading to the battery.

    • Tweezers may help.

  5. p2XbYDWqyVQLjwZE
    p2XbYDWqyVQLjwZE
    F1AeshOhPGj1pTaf
    MrgHPYKwGEAdIhT2

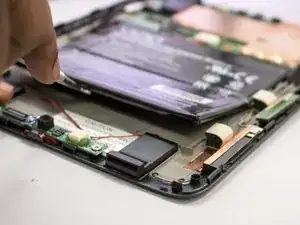

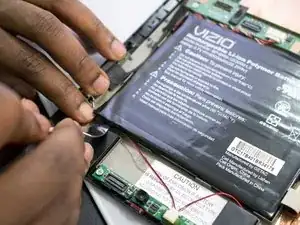

    • Pull the battery away from the back panel.

    • A metal spudger may be needed to pry the battery from the backing.

    • The battery is glued to the back panel and caution should be used as to not break or rupture the battery pack.

Abschluss

To reassemble your device, follow these instructions in reverse order.
