Vizio VTAB1008 Charging Port Replacement

Geschrieben von: Gilberto Ambriz
  • Kommentare: 0
Vizio VTAB1008 Charging Port Replacement

Schwierigkeitsgrad

Easy

Schritte

9

Zeitaufwand

10 Minuten

Einleitung

Hello! This is a guide on how to replace the charging port in your Vizio VTAB1008!

  1. LnnrJMRsqh6MwLUL
    LnnrJMRsqh6MwLUL
    EO6VhUZHjSu1oNUB

    • Carefully slide the heavy duty opening tool between the gap on the side of the device with no buttons.

    • Do not insert the opening tool too far into the tablet as this can damage connectors close to edges of the cover.

    • The angled tip of the opening tool can be wedged into the device by pressing on the back of the opening tool with the thumb. Move the opening tool in a sliding motion to ensure all tabs separate.

    • Corner tabs may require a more forceful prying tool. If needed, carefully insert the metal prying tool into corners to separate the tabs.

  2. 2SfTgABqUCBKoJCD

    • Look into the tablet for loose connectors.

    • There are three loose connectors: one for the screen, one for the digitizer, and one for the motherboard. They are held in place by the pressure of the backing and screen assemblies.

    • Flip the backing from the button-less side over, being careful not to separate the ribbon connector from the display screen.

  3. UGKixDJCgAhFp3nw
    UGKixDJCgAhFp3nw
    AyvJUif2h4k6RmCg
    pPVyBpY1eXTGB43Q

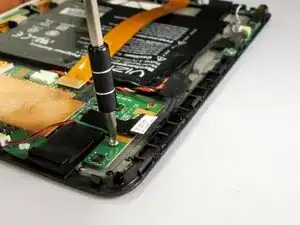

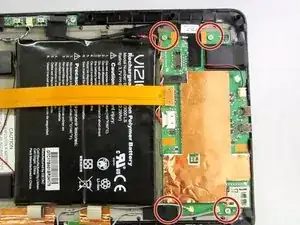

    • Remove the motherboard by unscrewing the four securing screws with a J1 Phillip's head screwdriver.

    • 3 of the screws are clearly visible while the 4th is hidden by black tape on the upper left corner of the motherboard.

  4. EZZY4gVm1ndoNpIr
    EZZY4gVm1ndoNpIr
    VhZLyFu4eqIsPSyY
    hxf2ZHEbIDPCZa3R

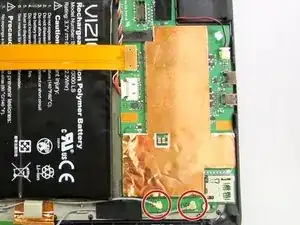

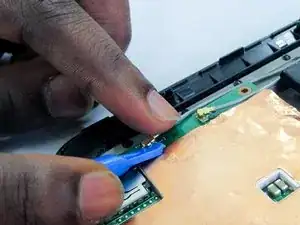

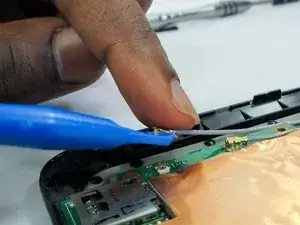

    • Remove both antenna connectors with a blue opening tool/tweezers.

  5. Kbe2reRypV5VGX6l
    Kbe2reRypV5VGX6l
    IRrJ1RAJBIYCiSGp
    cN1mqUjhFYWkluMK

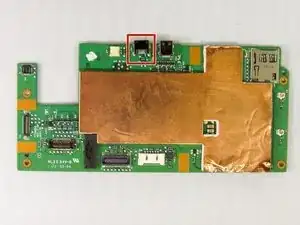

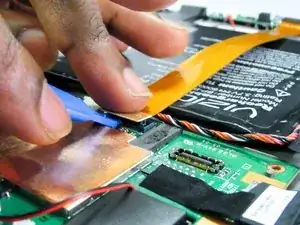

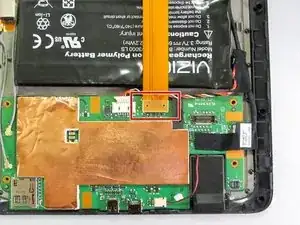

    • Remove the ribbon connector at the top of the motherboard using the opening tool.

  6. tbZItqWTPHQ5tdQE
    tbZItqWTPHQ5tdQE
    sMpoGMptP4LhMe6h

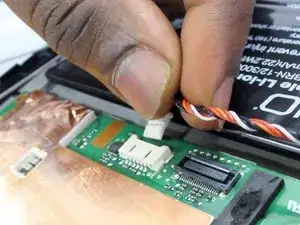

    • Remove the connector at the top of the motherboard by pulling the connector away from the motherboard with fingers or tweezers.

  7. nn33GXrpGONQhhM3
    nn33GXrpGONQhhM3
    UCj2veU5AWaoLs6O
    B4T5DA2tQNkGGJVF

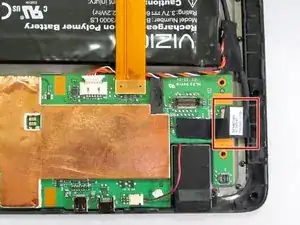

    • Remove the connector at the side of the motherboard using the opening tool.

    • The connector is covered by a piece of black tape.

  8. S6MLlHqbngiUXUhO
    S6MLlHqbngiUXUhO
    NrFejgQEMYS6VKWG

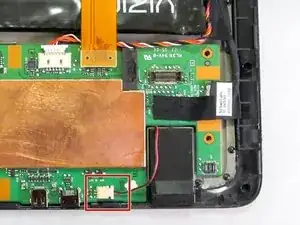

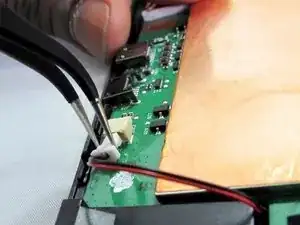

    • Remove the red and black wire connector from the motherboard using either fingers or tweezers.

  9. tAYMsIZap1qOqgIl
    tAYMsIZap1qOqgIl
    oeEnpfsh3mMr5Nfs
    1SmyhkLIRUJtOFxo

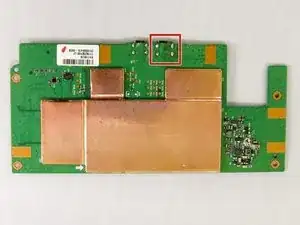

    • Flip the motherboard over.

    • Directly underneath the USB Charging connector will be four solder points that need to be undone in order to remove the charging port.

Abschluss

To reassemble your device, follow these instructions in reverse order.
