Vizio VTAB1008 Digitizer (Touchscreen) Replacement

Geschrieben von: Gilberto Ambriz
  • Kommentare: 0
Vizio VTAB1008 Digitizer (Touchscreen) Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

20 Minuten

Einleitung

Hello! This guide will show you how to replace the digitizer on your Vizio VTAB1008.

  1. LnnrJMRsqh6MwLUL
    LnnrJMRsqh6MwLUL
    EO6VhUZHjSu1oNUB

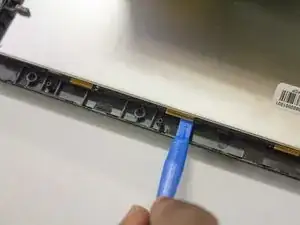

    • Carefully slide the heavy duty opening tool between the gap on the side of the device with no buttons.

    • Do not insert the opening tool too far into the tablet as this can damage connectors close to edges of the cover.

    • The angled tip of the opening tool can be wedged into the device by pressing on the back of the opening tool with the thumb. Move the opening tool in a sliding motion to ensure all tabs separate.

    • Corner tabs may require a more forceful prying tool. If needed, carefully insert the metal prying tool into corners to separate the tabs.

  2. 2SfTgABqUCBKoJCD

    • Look into the tablet for loose connectors.

    • There are three loose connectors: one for the screen, one for the digitizer, and one for the motherboard. They are held in place by the pressure of the backing and screen assemblies.

    • Flip the backing from the button-less side over, being careful not to separate the ribbon connector from the display screen.

  3. V2hGlvIXHGBnDgmn
    V2hGlvIXHGBnDgmn
    VdUnOWFmUHKTXss4
    Zbc2CIc1NCwPiPMl

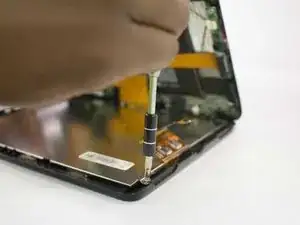

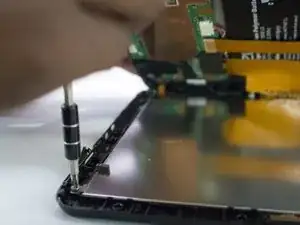

    • Remove the two screws present using the J1 Screw bit.

    • The screw has a head size of 4.3 mm and is 3 mm tall.

  4. OMUBYlDMtSIKQGU2
    OMUBYlDMtSIKQGU2
    hgBnURAXS4RSNmNJ
    j2sMvJ1b5MMhtx5E

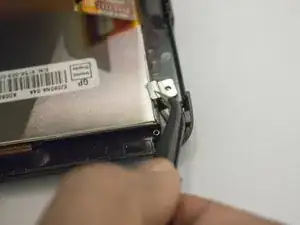

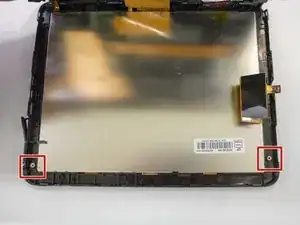

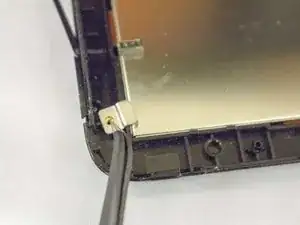

    • Remove the two brackets accompanying screws by lifting them up and away from the screen.

    • Brackets are 8.5 mm by 6.55 mm.

  5. cjrrs5Dga5MI4QYR
    cjrrs5Dga5MI4QYR
    NAlJPUkMWeXIDoo4
    EAJNS1LOAAv1fdok

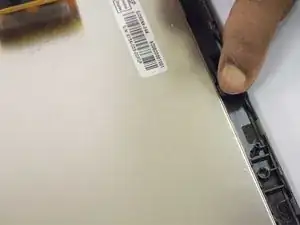

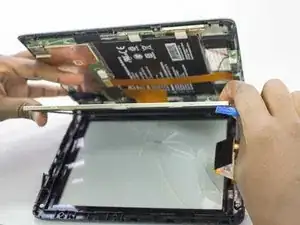

    • Separate the screen digitizer from the display screen, noting the placement of the quick disconnect ribbon cable.

    • Use a spudger if necessary to assist in the separation.

  6. fceqbRZY1qn5QO4Y
    fceqbRZY1qn5QO4Y
    QfpNyONrZQcQxbW6

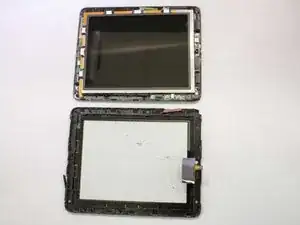

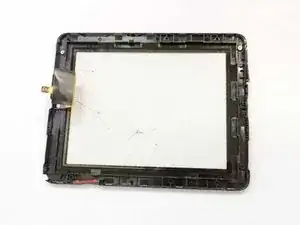

    • The digitizer should now be able to be freely removed.

Abschluss

To reassemble your device, follow these instructions in reverse order.
