Vizio VTAB1008 Front Facing Camera Replacement

Geschrieben von: Gilberto Ambriz
  • Kommentare: 0
Vizio VTAB1008 Front Facing Camera Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

Hello! This is a guide on how to replace the front-facing camera and light sensor in your Vizio VTAB1008.

  1. LnnrJMRsqh6MwLUL
    LnnrJMRsqh6MwLUL
    EO6VhUZHjSu1oNUB

    • Carefully slide the heavy duty opening tool between the gap on the side of the device with no buttons.

    • Do not insert the opening tool too far into the tablet as this can damage connectors close to edges of the cover.

    • The angled tip of the opening tool can be wedged into the device by pressing on the back of the opening tool with the thumb. Move the opening tool in a sliding motion to ensure all tabs separate.

    • Corner tabs may require a more forceful prying tool. If needed, carefully insert the metal prying tool into corners to separate the tabs.

  2. 2SfTgABqUCBKoJCD

    • Look into the tablet for loose connectors.

    • There are three loose connectors: one for the screen, one for the digitizer, and one for the motherboard. They are held in place by the pressure of the backing and screen assemblies.

    • Flip the backing from the button-less side over, being careful not to separate the ribbon connector from the display screen.

  3. jfPHkBmgQhJDiTQ5
    jfPHkBmgQhJDiTQ5
    feYDmxNOCPHR2u4I

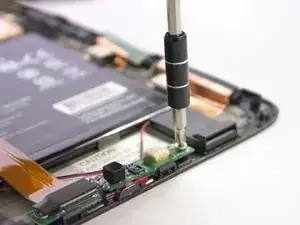

    • Remove the screw with the J1 screwdriver or screw bit.

    • The screw has a 3.66 mm head and is 3.5 mm tall.

  4. mmcuItSvYCPjQM6b
    mmcuItSvYCPjQM6b
    IfjKYSkIocxPAFjD
    ftcJkpByhyimuGKm

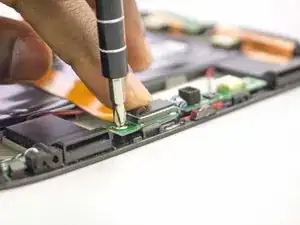

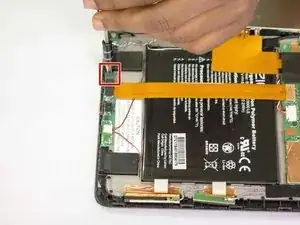

    • Lift the flap hiding the second screw.

    • Remove the screw by using the J1 screwdriver.

    • The screw has a 3.66 mm head and is 3.5 mm tall.

  5. HKoVpS5I1aDi5lEj
    HKoVpS5I1aDi5lEj
    eNxcqlxpaoxsZCTC
    ZXewMLpmDBVcOlK1

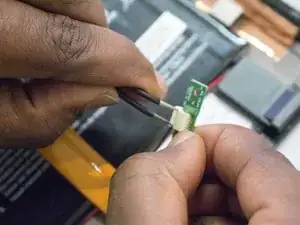

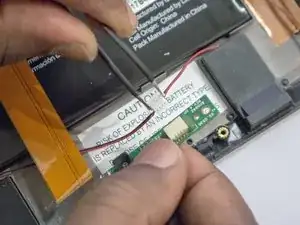

    • Disconnect the black and red cable connector from the camera strap.

    • Using tweezers may help to grab the small connector flanges.

  6. jn2TtPP5y1FIq1NQ
    jn2TtPP5y1FIq1NQ
    cqtiEEqAgimDmYco
    DxevCHwsN5uBPcLZ

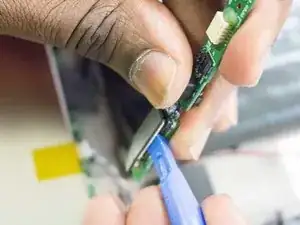

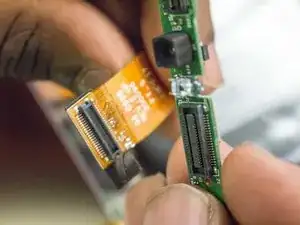

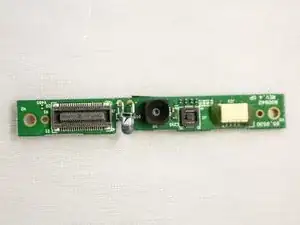

    • Disconnect the ribbon cable from the camera circuit board by lifting it away from the circuit board.

    • A spudger may help with leverage when removing the ribbon cable.

Abschluss

To reassemble your device, follow these instructions in reverse order.
