Vizio VTAB1008 Wi-Fi Antenna Replacement

Geschrieben von: Gilberto Ambriz
  • Kommentare: 0
Vizio VTAB1008 Wi-Fi Antenna Replacement

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

Keine Schätzung

Einleitung

Hello! This guide will help you replace the Wi-Fi antenna in your Vizio VTAB1008.

  1. LnnrJMRsqh6MwLUL
    LnnrJMRsqh6MwLUL

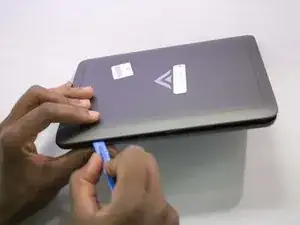

    EO6VhUZHjSu1oNUB

    • Carefully slide the heavy duty opening tool between the gap on the side of the device with no buttons.

    • Do not insert the opening tool too far into the tablet as this can damage connectors close to edges of the cover.

    • The angled tip of the opening tool can be wedged into the device by pressing on the back of the opening tool with the thumb. Move the opening tool in a sliding motion to ensure all tabs separate.

    • Corner tabs may require a more forceful prying tool. If needed, carefully insert the metal prying tool into corners to separate the tabs.

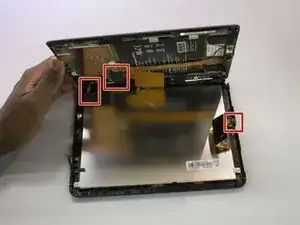

  2. 2SfTgABqUCBKoJCD

    • Look into the tablet for loose connectors.

    • There are three loose connectors: one for the screen, one for the digitizer, and one for the motherboard. They are held in place by the pressure of the backing and screen assemblies.

    • Flip the backing from the button-less side over, being careful not to separate the ribbon connector from the display screen.

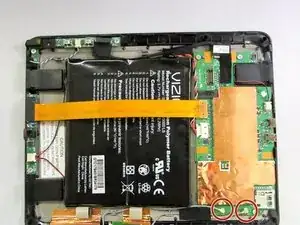

  3. JgOw2MPcExsbWCPS
    JgOw2MPcExsbWCPS

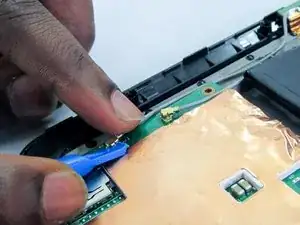

    ungmgCDsdQGxqUPo

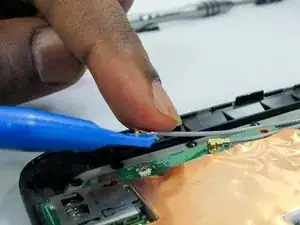

    cSydJ1QE3OHvLQ2v

    • Using the blue spudger/prying tool remove antenna connectors by prying them up from the motherboard.

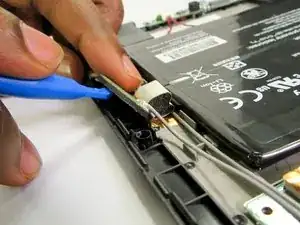

  4. NVlIFlWZvxtOYBuk
    NVlIFlWZvxtOYBuk

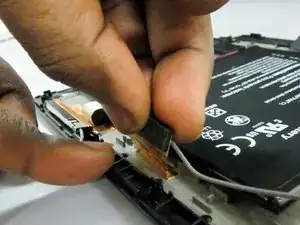

    broYjGoriQZNXgBu
    y2esWEtB6joeyQWG

    • Remove connectors from the back cover by gently prying.

    • Connectors are glued down, but copper can be removed from the backing with light pulling.

Abschluss

To reassemble your device, follow these instructions in reverse order.
