Vornado 133 Compact Air Circulator Fuse Replacement

Geschrieben von: Erin Klein
  • Kommentare: 11
Vornado 133 Compact Air Circulator Fuse Replacement

Schwierigkeitsgrad

Easy

Schritte

3

Zeitaufwand

10 Minuten

Einleitung

The Vornado 133 has a small fuse in the plug end as a safety feature; if the fuse has burnt out, your fan will not start. This guide will illustrate how to remove and replace the fuse.

  1. ef3HJ2XDLW5AVNHH

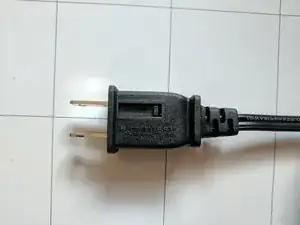

    • Ensure the unit is powered off and remove the plug from the outlet.

  2. nRnZbDjHefNOhnsY
    nRnZbDjHefNOhnsY
    YMVnZTYPjmxKNCM4
    xyim1kMCjqNyBFbi

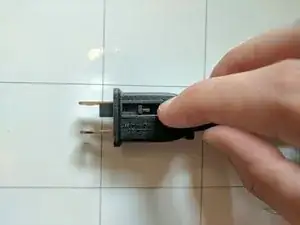

    • Slide open the fuse access cover on the top of the plug by moving it towards the end of the plug.

  3. svHKoJbqMNZWGQCY
    svHKoJbqMNZWGQCY
    RPHKSBoIh4nDpMKY
    eZKEkfIK2wXFlnSs

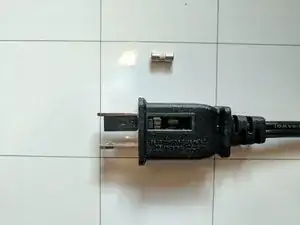

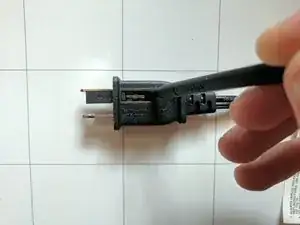

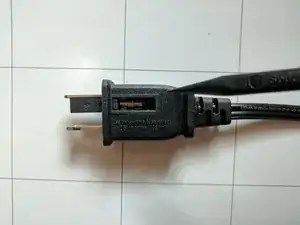

    • Use a pair of tweezers or a small plastic spudger to remove the fuse from the fuse casing. Remove the end nearer to the fan body first, then the end nearer to the plug end.

    • The replacement fuse must be 2.5 amp, 125 volt.

    • Do not push against the glass center of the fuse, only the metal end pieces.

    very informative. A ok

    Richard Lovelace -

Abschluss

Follow these instructions in reverse order to install the new fuse and close the access panel.
