Vornado 133 Compact Air Circulator Grill Cover Replacement

Geschrieben von: Erin Klein
  • Kommentare: 1
Vornado 133 Compact Air Circulator Grill Cover Replacement

Schwierigkeitsgrad

Very easy

Schritte

2

Zeitaufwand

Keine Schätzung

Einleitung

A dirty grill may impede air flow and fan functionality, and a bent or damaged grill may impact the fan blades themselves. This guide will show you how to remove the front grill cover for cleaning or replacement.

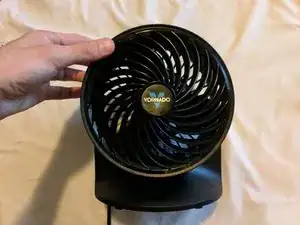

  1. lCOH64SJjdVrcSfb
    lCOH64SJjdVrcSfb
    EIZIiNg32MJFrEAe
    IlEdcaSgUaJN15vF

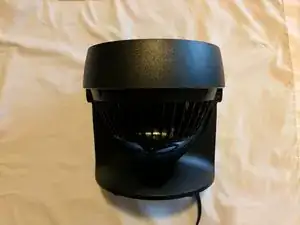

    • Use a #1 Phillips screwdriver to remove the four 3mm screws.

    • It may be difficult to reach the bottom two screws; tilt the fan housing straight upwards for easier access.

  2. DbQDpZRValYfU2To
    DbQDpZRValYfU2To
    xy2YrOWMGFYQeHYq

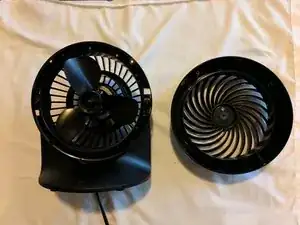

    • Once the screws are removed, turn the fan back over. Use your hands to pull the front grill cover off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
